Highly adaptable to various environments, reliable, durable, easy to integrate, and cost-effective to maintain.
Suitable for low-pressure water pumps, high-pressure water pumps, air compressors, crushers, and cementing units
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

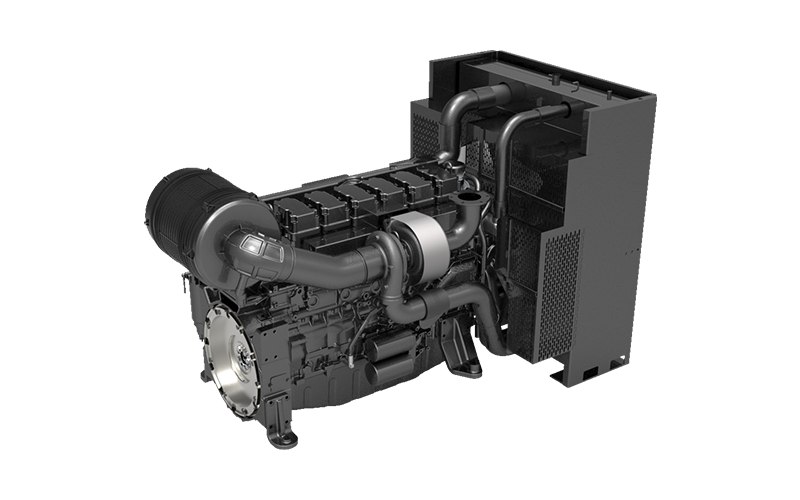

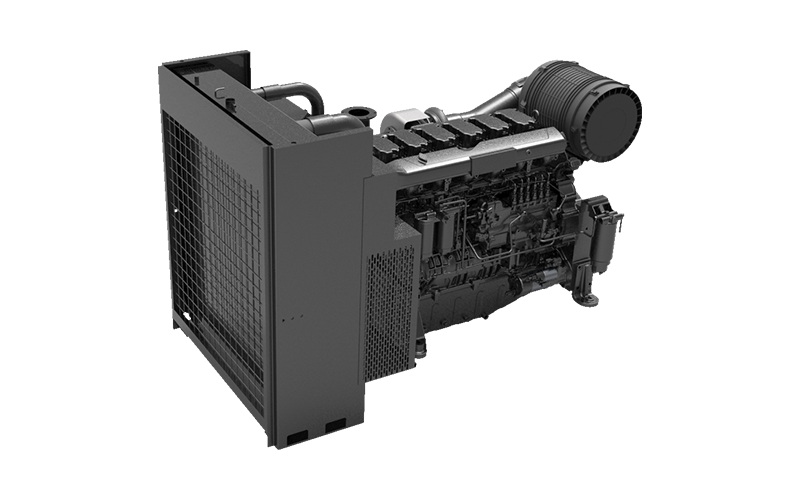

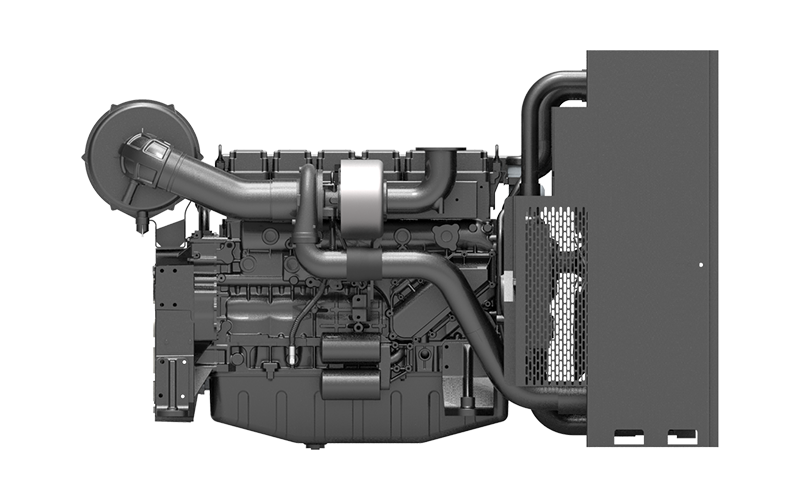

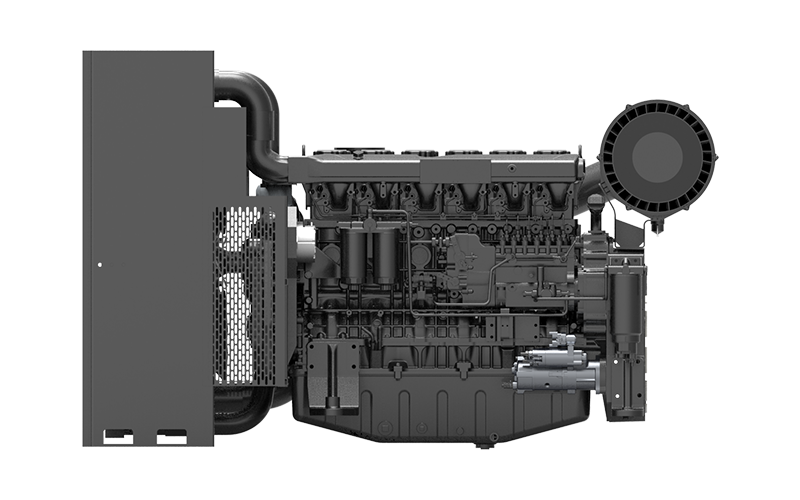

The 6M21 engine features a 12.54L displacement with a power range of 350-405 kW. It meets non-emission requirements and is applicable to industries such as high-pressure cleaning, crushers, cementing units, air compressors, workover rigs, and low-pressure water pumps.
产品优势
Features mechanical governing for rapid response and high stability, with enhanced tolerance to harsh environments and varying fuel quality.
Core components, including the engine block and crankshaft, are manufactured from high-strength materials for superior wear resistance and impact toughness.
Compact design supports installation in confined spaces (e.g., truck-mounted pump units, mobile drilling rig power compartments).
The Pump-Drive power pack is equipped with a high-efficiency radiator, ensuring stable power output in high-temperature environments (45℃).
Simplified design allows for easy disassembly and installation, facilitating daily maintenance and repairs.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Displacement (L) |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Governing System |
Emission standard |
|
6M21V4D0 |
12.54 |
350/1800 |
2154/1500 |
Mechanical governor |
Zero emission |
|
6M21V2D0 |
12.54 |
370/2200 |
2000/1400-1600 |
Mechanical governor |
Zero emission |
|
6M21V6D0 |
12.54 |
405/2200 |
2203/1400 |
Electronic control |
Zero emission |
