WEICHAI

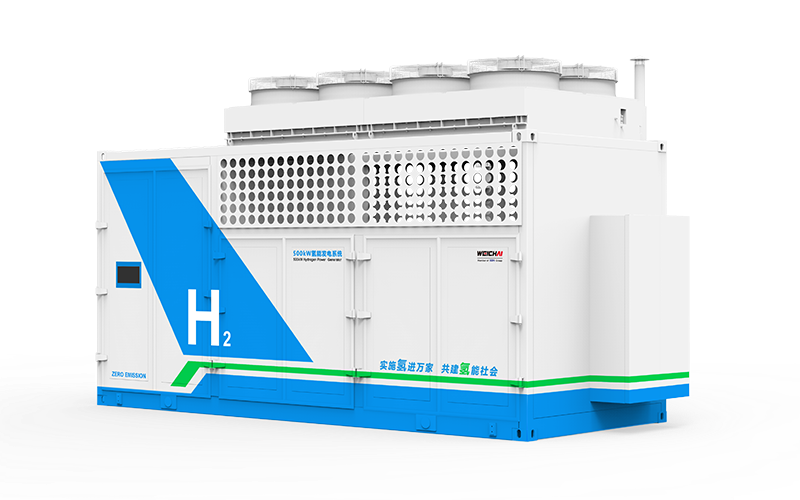

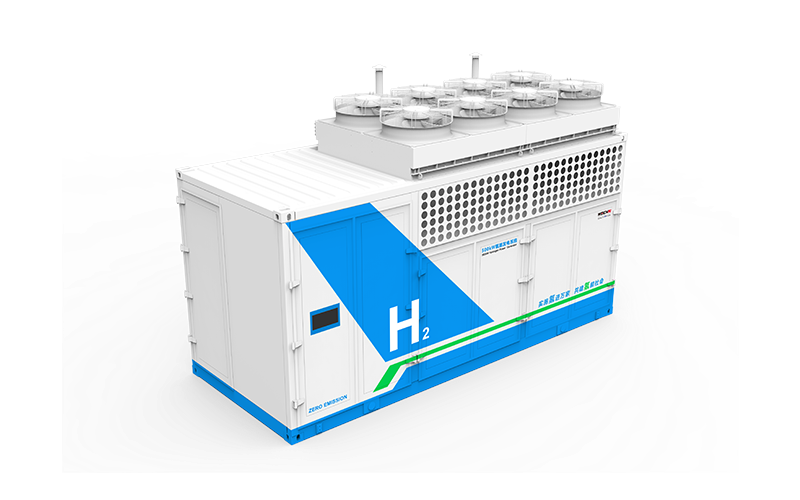

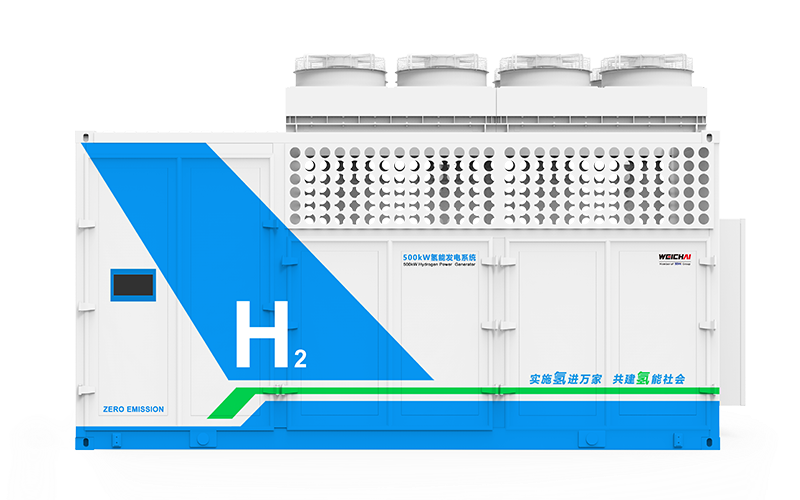

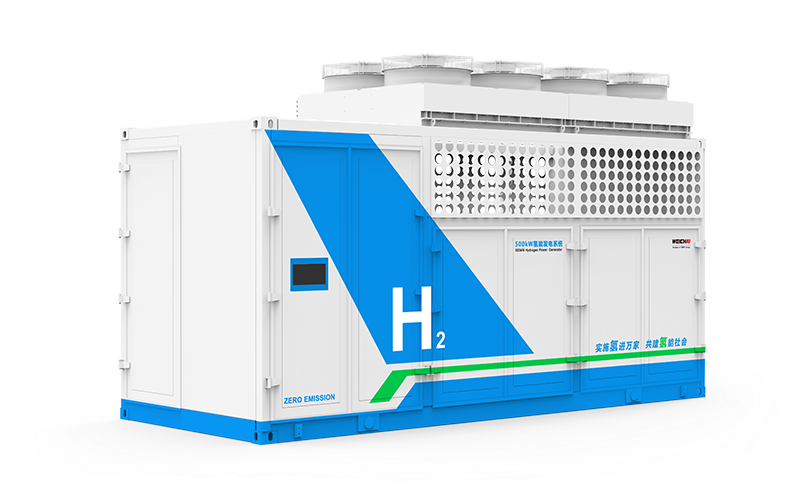

Stationary Power Generation WEFG500

Suitable for hydrogen-rich industrial parks, energy storage for wind and solar power stations, data centers, charging stations, emergency power supplies, and backup power applications.

Grid-tied / Off-grid

供电方式

500

额定电功率输出kW

产品概述

Developed based on mature engine technology with a power output up to 500 kW, suitable for multiple application scenarios, featuring high efficiency, environmental friendliness, intelligent management, fast response, and low noise.

产品优势

High Safety: Adopts a hydrogen-electric-thermal isolated distributed layout, combined with explosion-proof zoning and protection design for critical components. Features forced ventilation and active/passive fire protection interlocking mechanisms to prevent safety risks at the source and ensure inherent system safety.

High Reliability: Validated through extensive long-duration and multi-scenario testing. Features a string-type electrical architecture to enhance fault tolerance, coupled with real-time health monitoring and intelligent diagnostics to provide early warnings and ensure long-term stable operation.

High Adaptability: Modular design supports rapid assembly and flexible configuration, allowing for quick integration of waste heat recovery and off-grid functions. Capable of full-power operation in wide temperature ranges from -35 °C to 45 °C and at high altitudes, suitable for diverse application scenarios.

产品规格

供电方式
Grid-tied / Off-grid
额定电功率输出kW
500
综合效率
≥80%
发电效率
≥50%
电力输出V
400
运行环境温度℃
-35~45
尺寸(长×宽×高)m
6.2×2.5×3.5
重量t
Approx. 20

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Power Supply Mode

Control & Monitoring

Rated Electrical Power Output (kW)

Total Efficiency

Power Generation Efficiency

Water Supply Temperature (°C)

Power Output (V AC)

Hydrogen Inlet Pressure (MPa)

Operating Ambient Temperature (°C)

Dimensions (L × W × H)

Weight (t)

Application Scenario

WEFG500

Grid-tied / Off-grid

Local / Remote

500

≥ 80%

≥ 50%

55 – 60

400

1.4-1.8

-35 – 45

6.2 × 2.5 × 3.5 m

20

Hydrogen-rich industrial parks, energy storage for wind and solar power stations, data centers, charging stations, emergency power supplies, and backup power
