WEICHAI

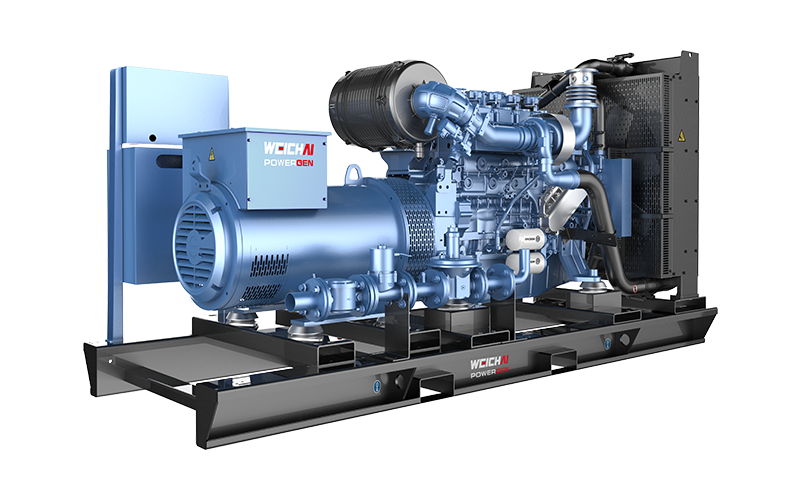

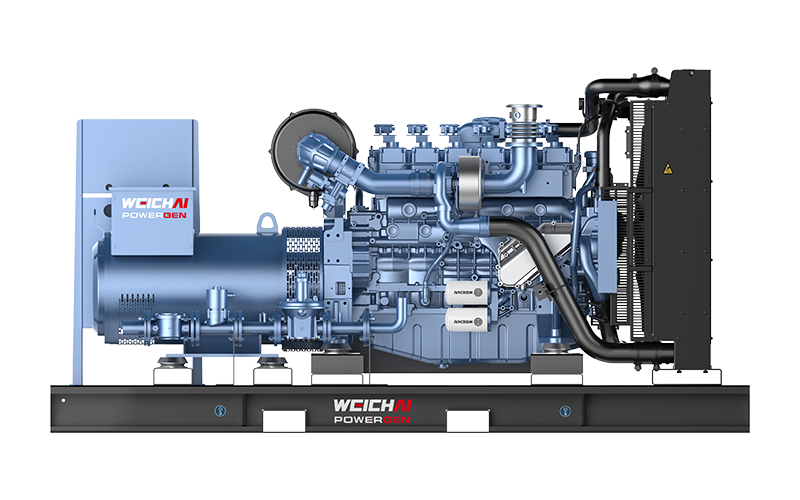

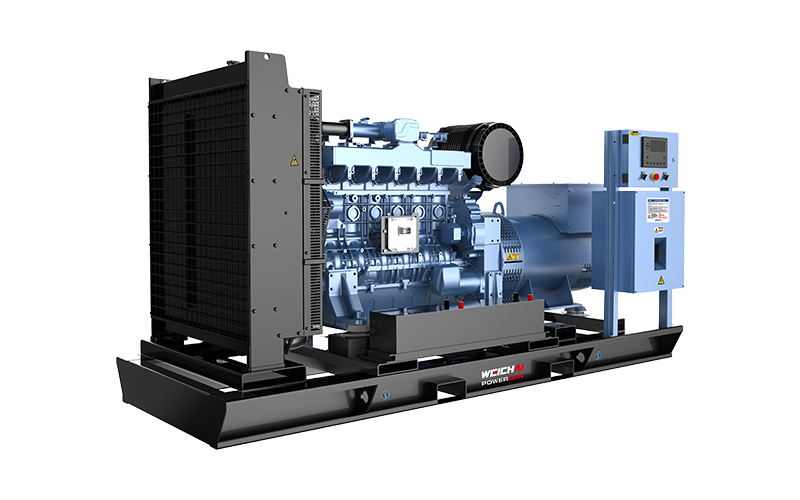

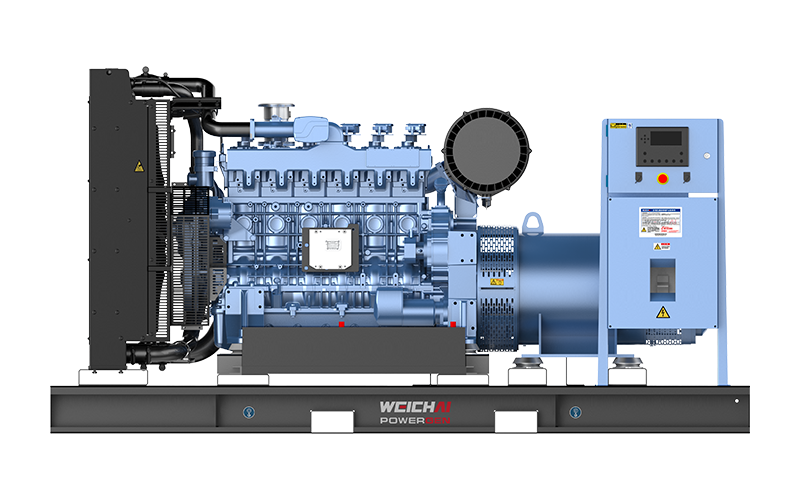

310 kVA Standard Land-based Generator Set

Suitable for general market, telecommunications, industrial warehousing, livestock farming, oil fields, mining, and equipment rental applications

250

功率范围/持续功率

Open, Silent

结构形式

产品概述

Based on the mature WP13 platform, the Weichai WP13NG gas generator set features high reliability, low emissions, strong adaptability, intelligent control, compact structure, and high reliability, meeting the needs of various application scenarios.

产品优势

Dynamic Performance: Features fast transient response, supports multiple air sources, and provides adaptive switching to ensure stable operation across all load profiles.

Intelligent Control: Integrates Weichai's proprietary Engine Control Unit (ECU) and cloud platform, supporting remote monitoring and fault pre-warning to meet connectivity requirements for smart power stations and digital factories

High Reliability: Standard equipped with electromagnetic shut-off valves and multiple gas leakage protections; verified through durability testing and various environmental challenges including high altitude, high temperature, and high humidity, ensuring high reliability

High Economy: Adopts high compression ratio and intelligent thermal management technology to achieve lower gas consumption rates than comparable products, significantly reducing total lifecycle operating costs

产品规格

持续功率kWe
250
产品系列
燃料
Natural gas
发动机型式
Inline
气缸数
6
缸径 × 行程mm
排量 L
12.54
机组尺寸(敞开式)mm
3200 × 1345 × 1885 (Open type)
重量(敞开式带散热器)kg
2960 (Open type with radiator)
结构形式
Open, Silent

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Engine Model

Displacement (L)

Speed (rpm)

Continuous Power (kVA/kW)

Prime Power (kVA/kW)

PG312*8NG

WP13D317E300NG

12.54

1500

250/200

310/250

PG250*86NG

WP13D317E301NG

12.54

1500

250/200

310/250
