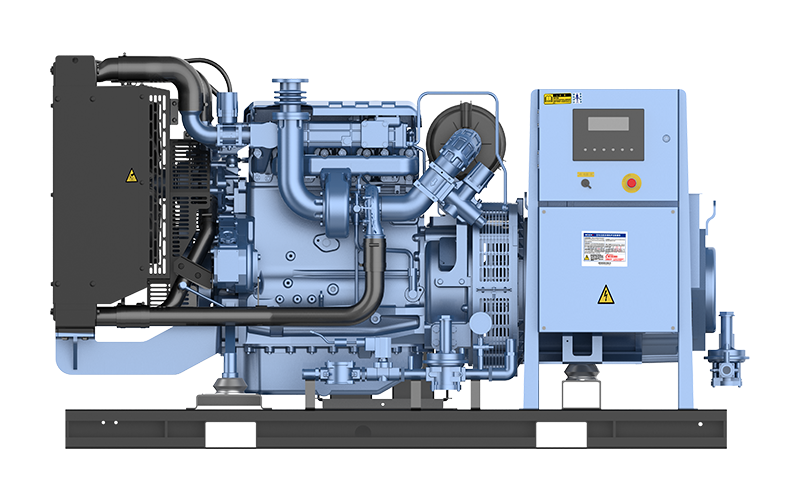

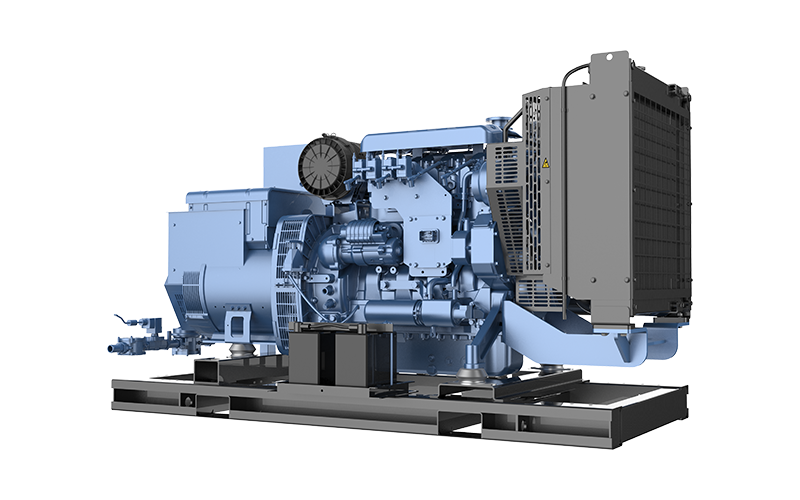

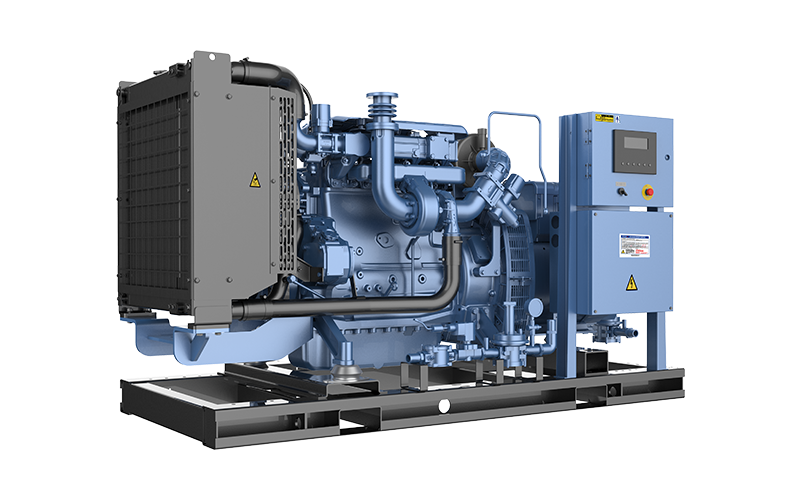

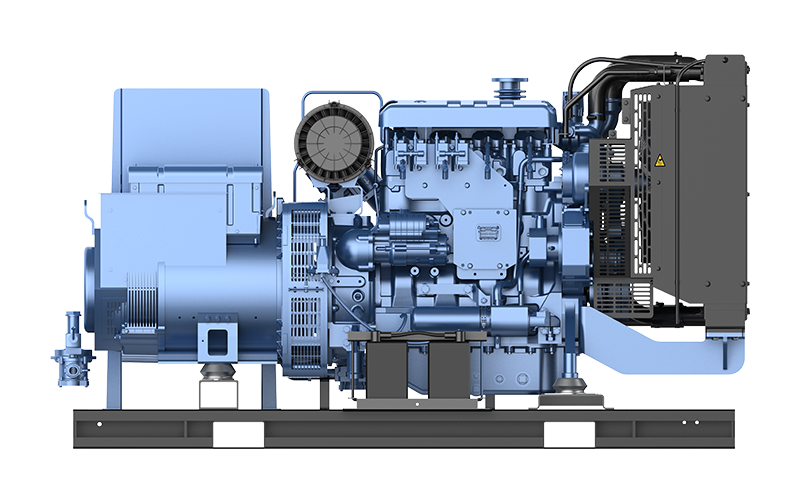

75 kVA Standard Land-based Generator Set

Suitable for the general market, industrial warehousing, real estate, and public utilities

60

功率范围/持续功率

Open, Silent

结构形式

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Energy & Power/Generator Set/Overseas Gas

概述优势规格型谱表

产品概述

The WP4NG series engine is a next-generation gas engine independently developed by Weichai, featuring high reliability, superior economy, robust environmental adaptability, and low maintenance costs; The WP4NG gas engine has a continuous power output ranging from 30-60 kWm, suitable for 25-50 kWe generator sets.

产品优势

High reliability: Compacted graphite iron (CGI) cylinder block and cylinder head, alloy steel crankshaft, high structural strength, and long design service life

Superior economy: Electronic high-pressure common rail (HPCR) fuel system ensures optimal fuel atomization, high power density, and energy efficiency

Superior power performance: Specifically designed to meet the rigorous requirements of modern data centers, featuring flexible calibration of the proprietary ECU and excellent load-bearing capacity

Premium configuration: Supporting the sustainable development of global data centers and providing high-end customized solutions for the digital infrastructure sector

产品规格

持续功率kWe

产品系列

燃料

Natural gas

发动机型式

Inline

气缸数

缸径 × 行程mm

排量 L

4.5

机组尺寸（敞开式）mm

2000×930×1373 (Open type)

重量（敞开式带散热器）kg

1350 (Open type with radiator)

结构形式

Open, Silent

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Genset Model	Engine Model	Displacement (L)	Speed (rpm)	Continuous Power (kVA/kW)	Prime Power (kVA/kW)
PG75*9NG	WP4D77E300NG	4.5	1500	60/50	75/60
PG60*96NG	WP4D77E301NG	4.5	1800	60/50	75/60
