产品概述

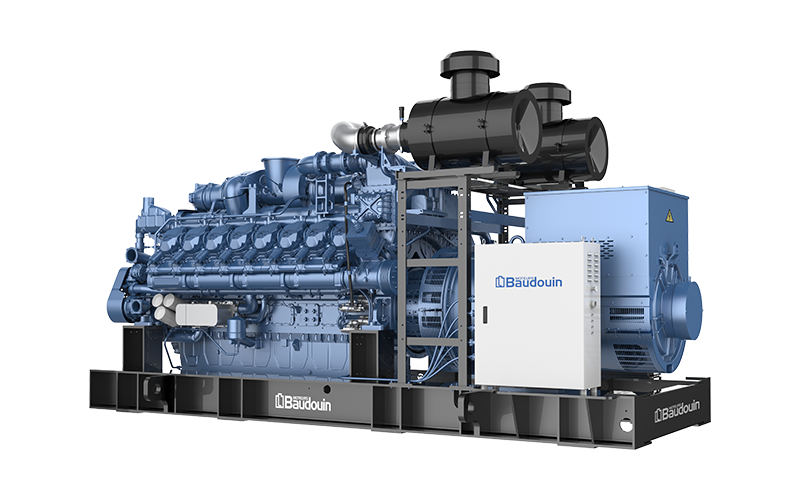

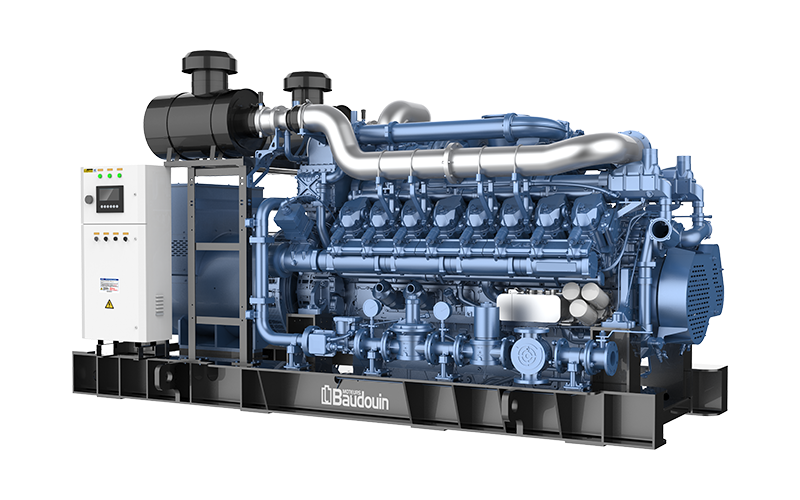

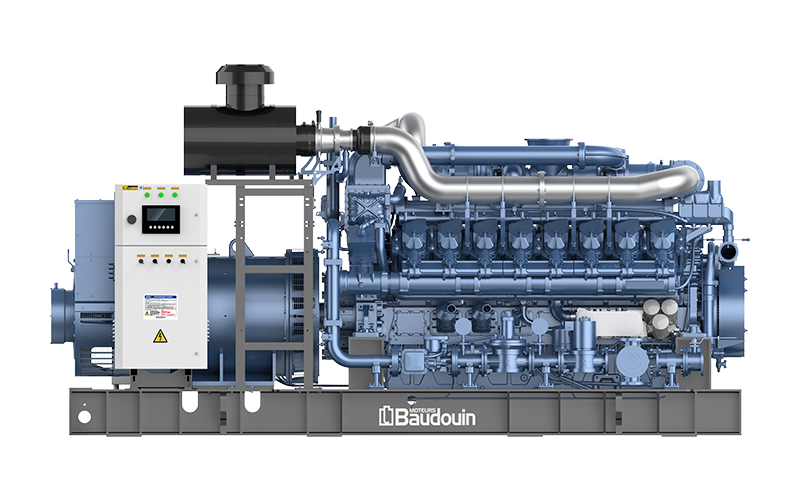

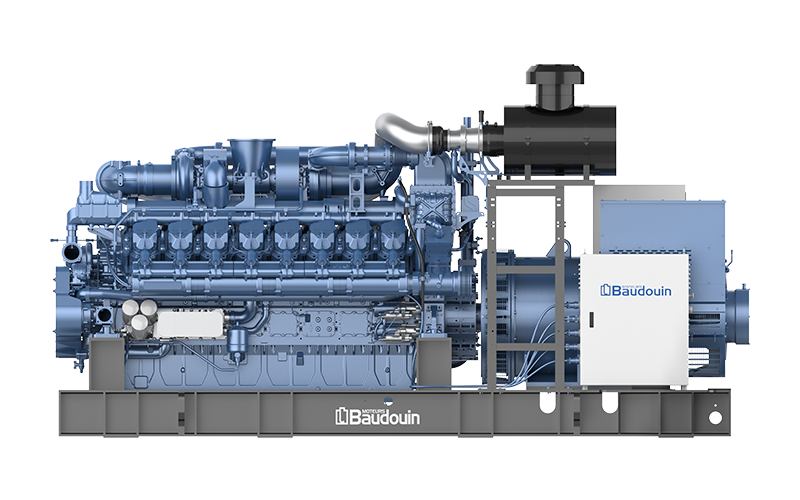

The 16M33NG series is a new generation of high power density engines independently developed by Weichai, featuring a compact structure and superior economy; The 16M33 gas engine has a power range of 900–1280 kWm, suitable for 858–1231 kWe generator sets.
产品优势
Combustion System: Adopts multiple technical routes, providing high engine thermal efficiency and compatibility with various emission standards and associated petroleum gas requirements for versatile applications
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Engine Model |
Displacement (L) |
Speed (rpm) |
Continuous Power (kVA/kW) |
Prime Power (kW) |
|
BPG1500*7NG |
16M33G6N0/5 |
52.3 |
1500 |
1500/1230 |
/ |
|
BPG1375*7NG |
16M33G6N2/5 |
52.3 |
1500 |
1375/1100 |
/ |
|
BPG1200*76NG |
16M33G6N0/6 |
52.3 |
1800 |
1500/1200 |
/ |
|
BPG1050*76NG |
16M33G4N2/6 |
52.3 |
1800 |
1350/1050 |
/ |
