产品概述

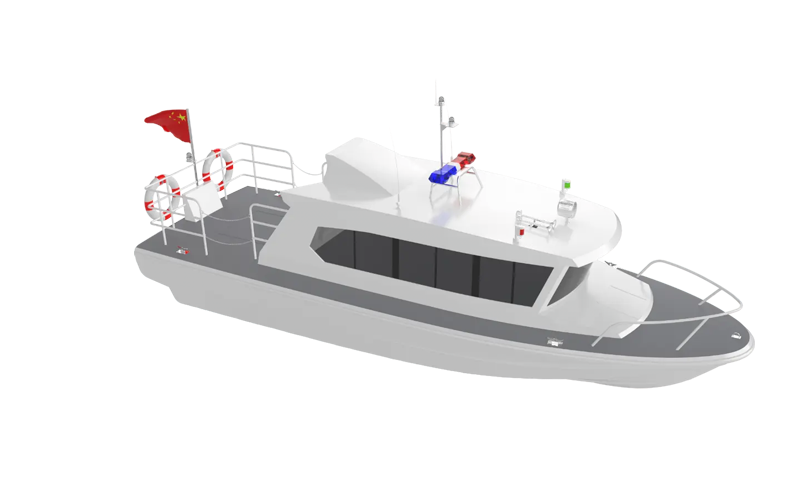

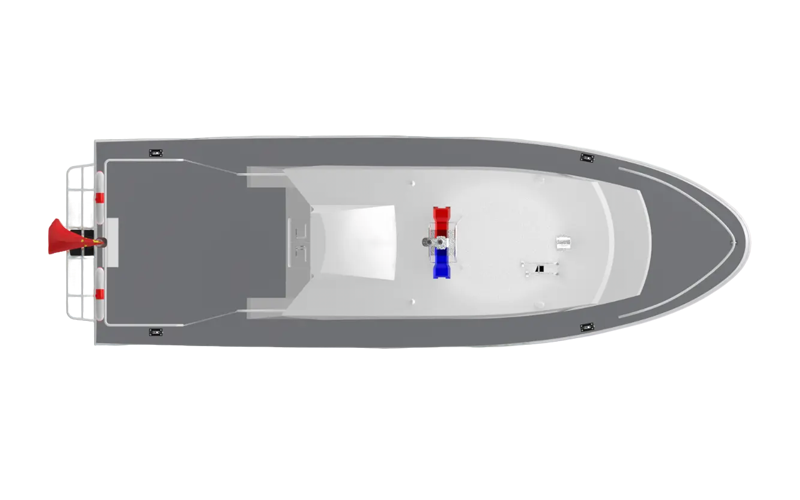

This vessel is suitable for coastal navigation areas in China and is constructed entirely from fiberglass (FRP). The deck is finished with anti-slip coating, the interior features high-grade plastic flooring, and it is equipped with imported gasoline outboard engines and domestic generator sets. With a full-power speed of up to 40 km/h, it serves as a high-speed patrol vessel for maritime operations.
产品优势
产品规格
|
LOA (m) |
8.53 |
|
Length (m) |
7.80 |
|
Total Beam (m) |
2.94 |
|
Beam (m) |
2.76 |
|
Overall Height (m) |
3.68 |
|
Depth (m) |
1.21 |
|
Full load displacement (t) |
4.60 |
|
Full load draft (m) |
0.51 |
|
Main engine |
1× MERCURY 200 SeaPro |
|
Max speed (km/h) |
40 |
|
Crew (personnel) |
1 |
|
Passengers (personnel) |
11 |
|
Operational restrictions |
Coastal navigation area |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
