产品概述

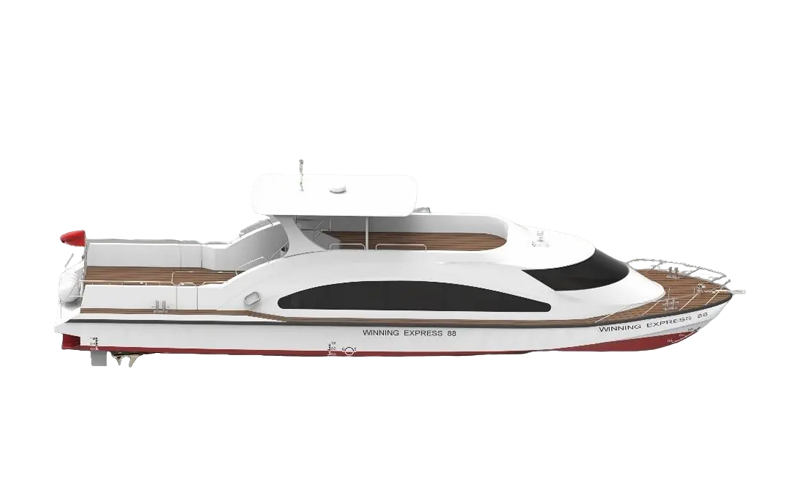

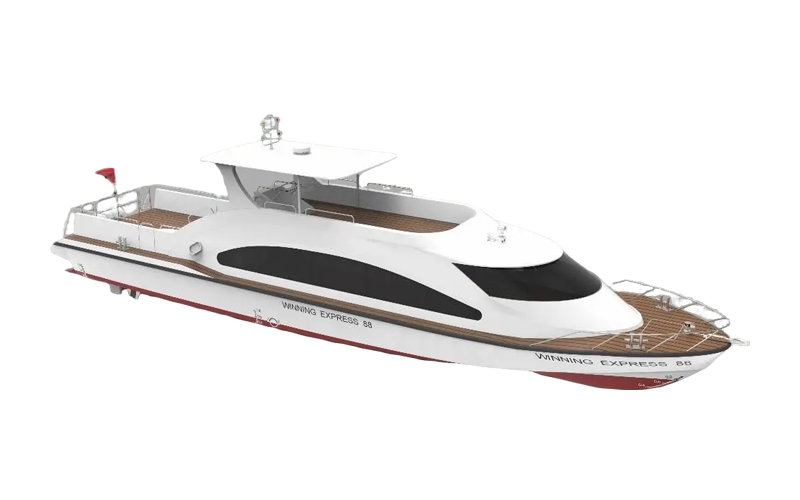

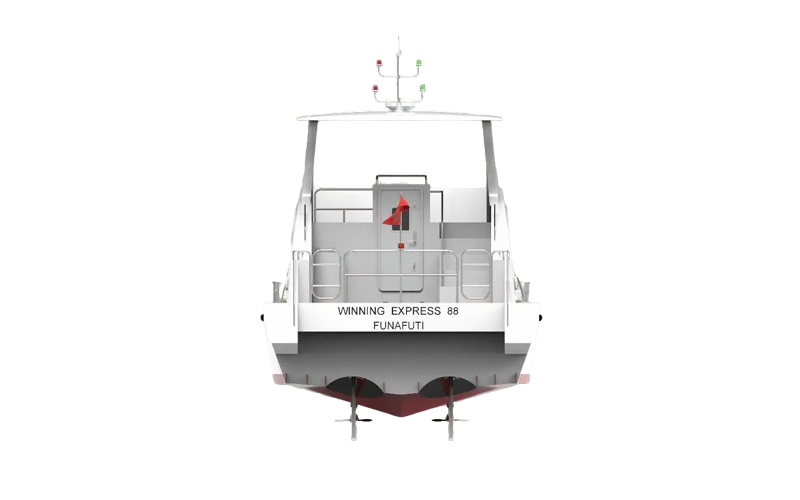

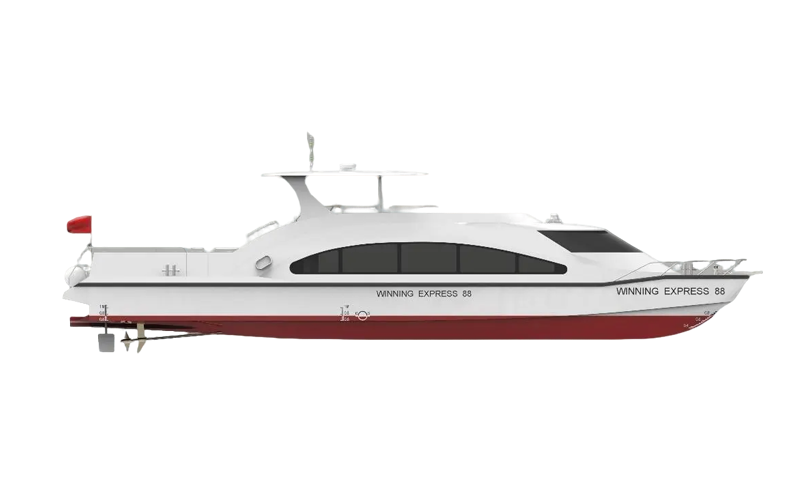

This vessel is designed for operation in the Guinea region of Africa and is constructed entirely of aluminum alloy. Features include an upper flybridge and a full-vessel teak deck. It is equipped with imported inboard engines, an imported generator set, a gyro stabilizer, and an electric windlass. With a full-power speed of up to 52 km/h, it is a high-speed, high-end leisure reception vessel designed for offshore navigation.
产品优势
产品规格
|
LOA (m) |
20.80 |
|
Length (m) |
19.77 |
|
Total Beam (m) |
4.92 |
|
Beam (m) |
4.80 |
|
Overall Height (m) |
9.10 |
|
Depth (m) |
1.80 |
|
Full load displacement (t) |
28.53 |
|
Full load draft (m) |
0.76 |
|
Main engine |
2×VOLVOD13-900 |
|
Max speed (km/h) |
52 |
|
Crew (personnel) |
3 |
|
Passengers (personnel) |
21 |
|
Operational restrictions |
Coastal navigation area |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
