WEICHAI

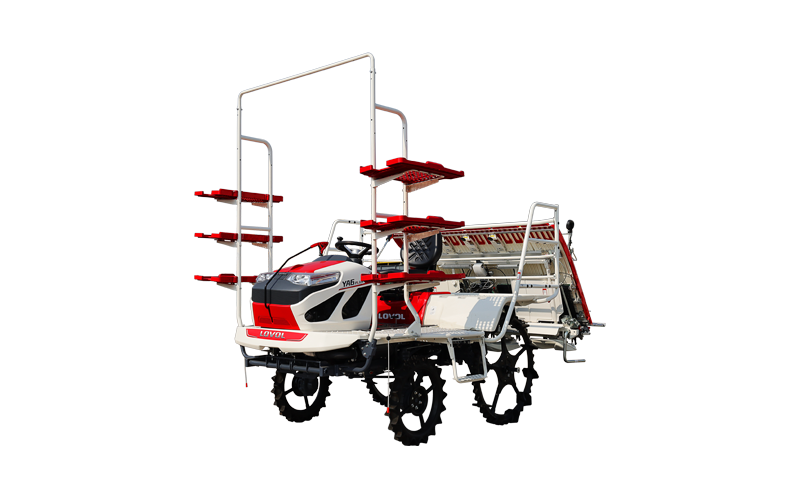

Transplanter 2ZG-6A30

25

发动机功率PS

0.5~0.78

作业效率h㎡/h

产品概述

Lovol rice transplanters deliver high operating efficiency and stable and reliable performance. They are mainly used for the transplanting of mat-type and pot seedlings of rice, and can achieve multi-functional applications such as fertilization and land leveling. The machine is equipped with a 25 hp engine, a 1.5 m² working platform, Danfoss HST, and a reinforced chassis.Featuring four-wheel shock absorption and a shock-absorbing seat for comfortable operation;The guardrail of the seedling-loading pedal features reduced rail spacing to ensure the safety of personnel loading seedlings, and mounting holes for protective netting are reserved on the guardrail for user convenience;The large working platform facilitates seedling-loading operations while accommodating a large volume of seedlings for continuous long-duration operation.The machine is equipped with a 25-horsepower engine, a 1.5 m² working platform, Danfoss HST and an enhanced chassis. Four-wheel shock absorption and shock-absorbing seats deliver superior riding comfort. The guardrails on the seedling loading step are densely arranged to protect operators during seedling feeding. Pre-drilled holes for safety net installation are reserved on the guardrails for user convenience. The spacious working platform facilitates seedling loading and accommodates a large volume of seedlings, enabling long-duration continuous operation.

产品优势

产品规格

Overall Dimensions(mm)

Total Weight (kg)

Engine Power(PS)

Working Efficiency(h㎡/h)

Fuel Tank Capacity(L)

Front Wheel Diameter × Width(mm)

Rear Wheel Diameter × Width (mm)

Wheel Track (mm)

Minimum Ground Clearance(mm)

Working Rows(rows)

Row Spacing(mm)

Plant Spacing(mm)

Transplanting Depth (mm)

3350x2220x2580

845

25

0.5~0.78

34

∅650×95

∅950×150

1220

500

6

300

(*1)100,120,140,160,180,210,240

10~55(7 grades)

备注:产品参数及图片仅供参考;如有变动,不另行通知。
