Transplanter 2ZG-8A25

25

发动机功率PS

0.5~0.83

作业效率h㎡/h

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses / Agricultural equipment / Specialized Equipment / Specialized Machinery / Specialized Machinery - Rice Transplanter

概述优势规格型谱表

产品概述

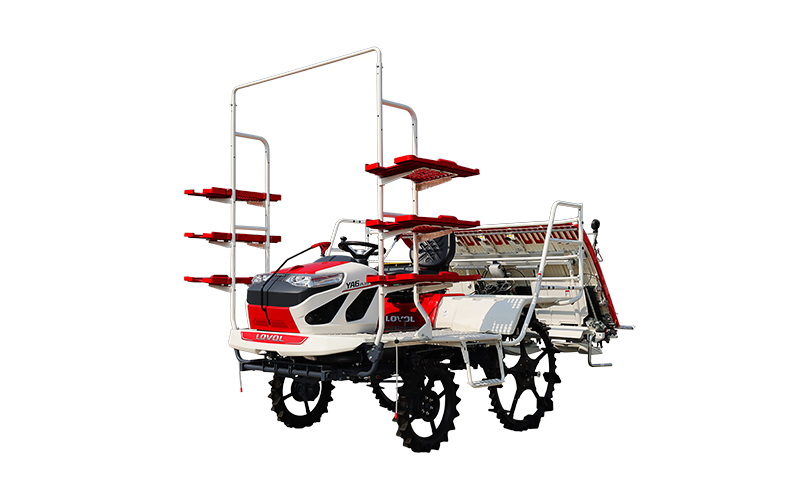

LOVOL rice transplanters deliver high operational efficiency and reliable performance, designed primarily for the transplanting of mat-type and pot-seedling rice, with versatile capabilities including integrated fertilization and land leveling.The machine features a 25 hp engine, a 1.5 m² operating platform, a Danfoss hydrostatic transmission (HST), and a reinforced chassis.Equipped with a four-wheel suspension system and a vibration-dampening seat to ensure operator comfort.The seedling loading platform features reinforced, high-density guardrails for enhanced operator safety, with pre-drilled mounting holes for optional safety netting.

产品优势

产品规格

Overall Dimensions(mm)

Total Weight (kg)

Engine Power(Ps)

Working Efficiency(h㎡/h)

Fuel Tank Capacity（L）

Front Wheel Diameter × Width(mm)

Rear Wheel Diameter × Width (mm)

Wheel Track (mm)

Minimum Ground Clearance(mm)

Working Rows(rows)

Row Spacing(mm)

Plant Spacing(mm)

Transplanting Depth (mm)

3350x2220x2580

880

0.5~0.83

∅650×95

∅950×150

1220

500

250

(*1)100,120,140,160,180,210,240

10~55(7 grades)

备注：产品参数及图片仅供参考；如有变动，不另行通知。
