Compact dimensions and lightweight design, effectively reducing enclosure costs and providing significant cost savings for customers
Suitable for general market, telecommunications, industrial warehousing, livestock farming, and drone power supply applications
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

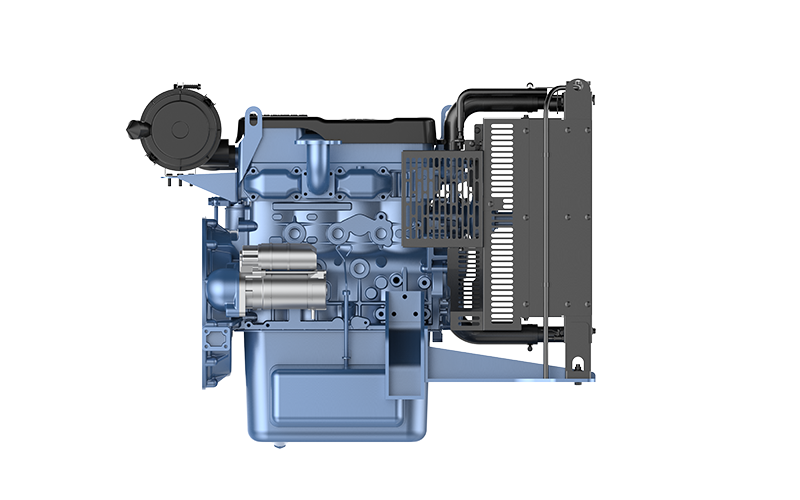

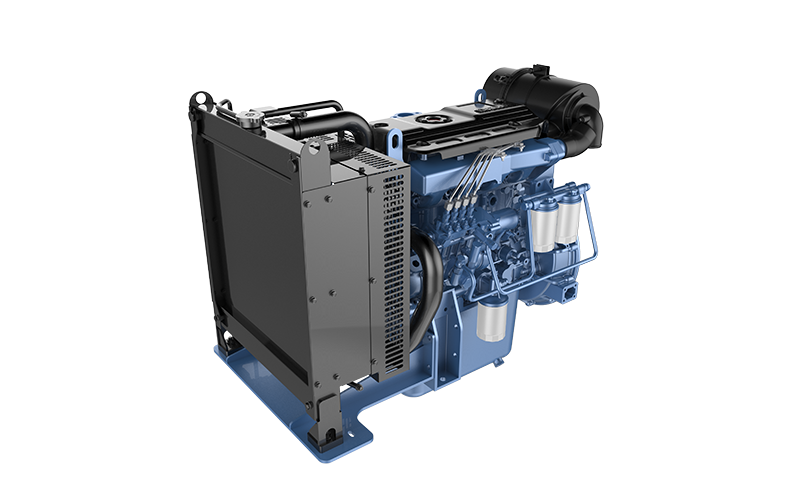

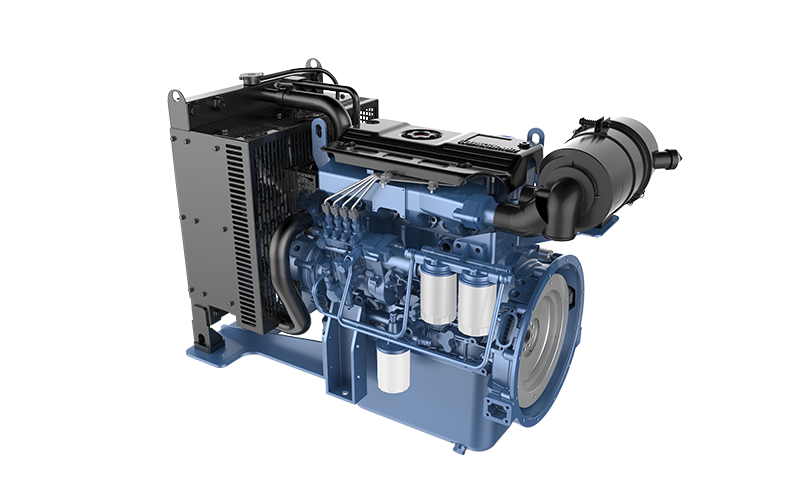

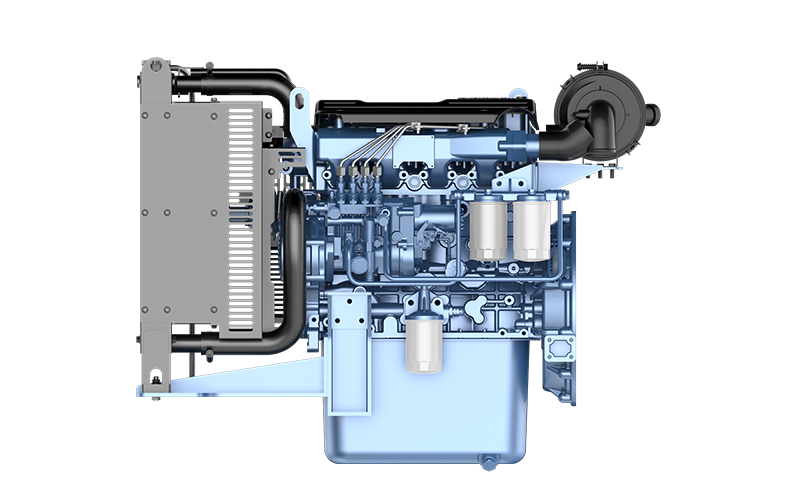

The 4M06 series is a new generation of high power density engines independently developed by Weichai, featuring a compact structure and superior fuel economy; Power output ranges from 18 to 63 kWm, suitable for 12–55 kWe generator sets.
产品优势
Fuel System: Electronic speed regulation for high precision, improved speed stability, and faster load response
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
4M06G20/5 |
2.3 |
2 |
18/1500 |
20/1500 |
12 |
14 |
Electronic Speed Regulation |
|
4M06G25/5 |
2.3 |
2 |
23/1500 |
25/1500 |
16 |
18 |
Electronic Speed Regulation |
|
4M06G35/5 |
2.3 |
2 |
30/1500 |
33/1500 |
24 |
26 |
Electronic Speed Regulation |
|
4M06G44/5 |
2.3 |
2 |
36/1500 |
40/1500 |
30 |
33 |
Electronic Speed Regulation |
|
4M06G50/5 |
2.3 |
2 |
44/1500 |
48/1500 |
36 |
40 |
Electronic Speed Regulation |
|
4M06G55/5 |
2.3 |
2 |
48/1500 |
53/1500 |
40 |
44 |
Electronically controlled high-pressure common rail |
|
4M06G20/6 |
2.3 |
2 |
23/1800 |
25/1800 |
18 |
20 |
Electronic Speed Regulation |
|
4M06G25/6 |
2.3 |
2 |
27/1800 |
30/1800 |
20 |
24 |
Electronic Speed Regulation |
|
4M06G33/6 |
2.3 |
2 |
37/1800 |
41/1800 |
30 |
33 |
Electronic Speed Regulation |
|
4M06G41/6 |
2.3 |
2 |
43/1800 |
47/1800 |
35 |
40 |
Electronic Speed Regulation |
|
4M06G50/6 |
2.3 |
2 |
53/1800 |
58/1800 |
40 |
50 |
Electronic Speed Regulation |
|
4M06G55/6 |
2.3 |
2 |
58/1800 |
63/1800 |
50 |
55 |
Electronically controlled high-pressure common rail |
