WEICHAI

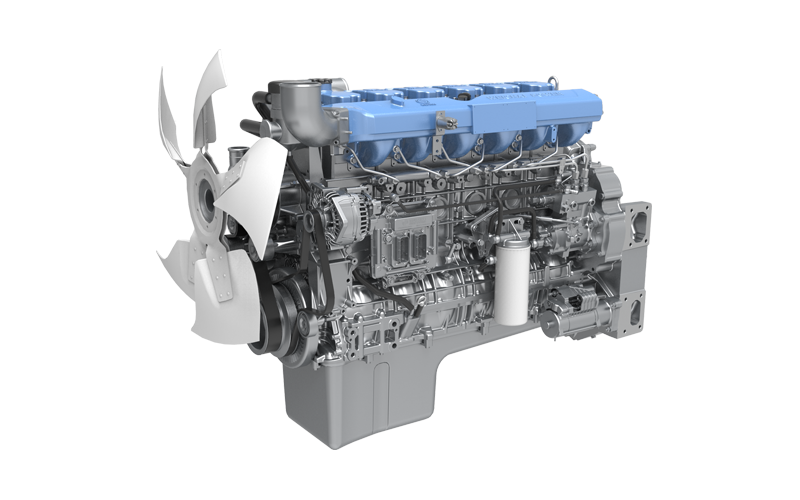

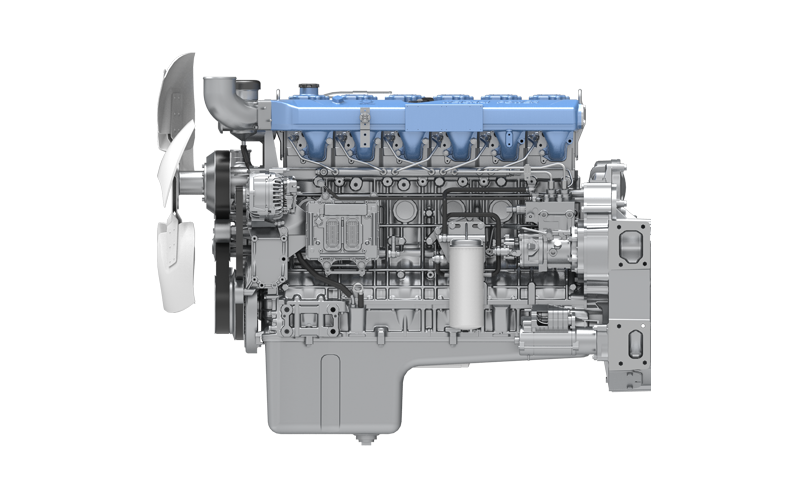

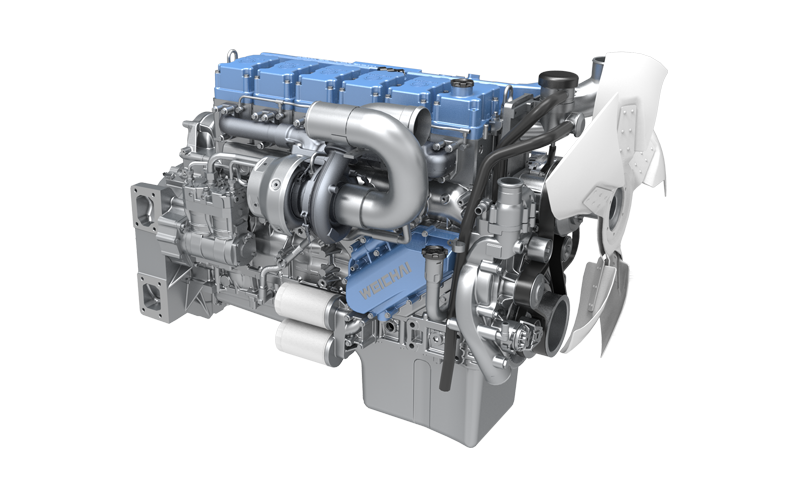

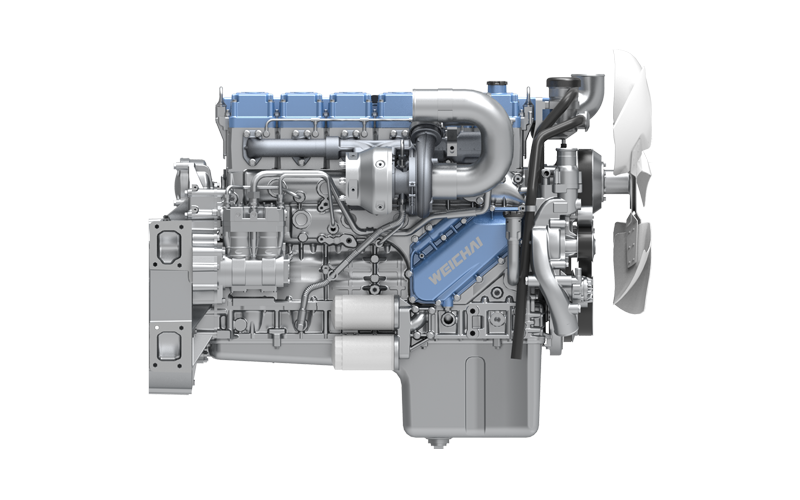

WP12 Engine for Tractor

Adapted for 380–400 PS heavy-duty wheeled tractors.

294-338/400-460

功率范围 kW/Ps

2110/1000-1400

最大扭矩/转速 N·m / r/min

产品概述

The Weichai WP12 tractor engine features superior power, extreme reliability, and excellent fuel economy.

产品优势

Enhanced Reliability: High-spec configuration with a low failure rate. Equipped with a dual-element paper air filter to extend maintenance intervals; the pre-filtration efficiency reaches ≥93%, lowering operating costs for customers. Utilizing the BOSCH high-pressure common rail (HPCR) system to achieve precise fuel injection control, steady fuel pressure, uniform atomization, and optimal air exchange, resulting in a more rational fuel system match and improved power density. Multi-layered system protection and error-correction measures enhance engine reliability and safety.

Higher Efficiency: Robust power and high operational efficiency. Large displacement provides a wider power range, greater torque reserve, and stable operating speeds, suitable for various agricultural application requirements.

Greater Comfort: Low vibration and noise. The frame-type main bearing structure of the cylinder block ensures high structural strength and low noise. Utilizing the BOSCH high-pressure common rail (HPCR) system ensures stable fuel pressure and enables multi-injection for more complete combustion, reducing overall machine vibration and noise while improving operator comfort.

产品规格

功率范围 kW/Ps
294-338/400-460
最大扭矩转速 N·m / r/min
2110/1000-1400
排放标准
EU Stage IIIA
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
11.6
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1611×817×1094
G重量 kg
1000

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP12G400E300

294/1900

1920/1000-1400

11.6

EU Stage IIIA

CR

Tractor

4

WP12G430E300

316/1900

2060/1000-1400

11.6

EU Stage IIIA

CR

Tractor

4

WP12G430E310

316/2100

1870/1200-1600

11.6

EU Stage IIIA

CR

Tractor

4

WP12G460E300

338/1900

2110/1000-1400

11.6

EU Stage IIIA

CR

Tractor

4

WP12G460E310

338/2100

2000/1200-1600

11.6

EU Stage IIIA

CR

Tractor

4
