产品概述

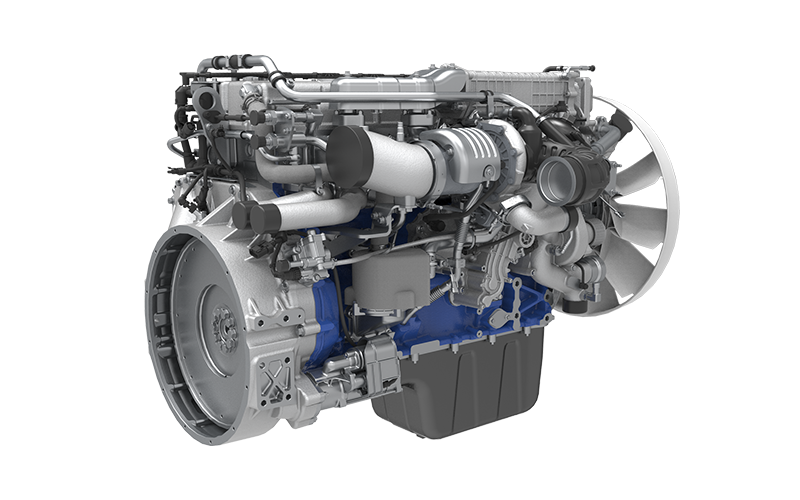

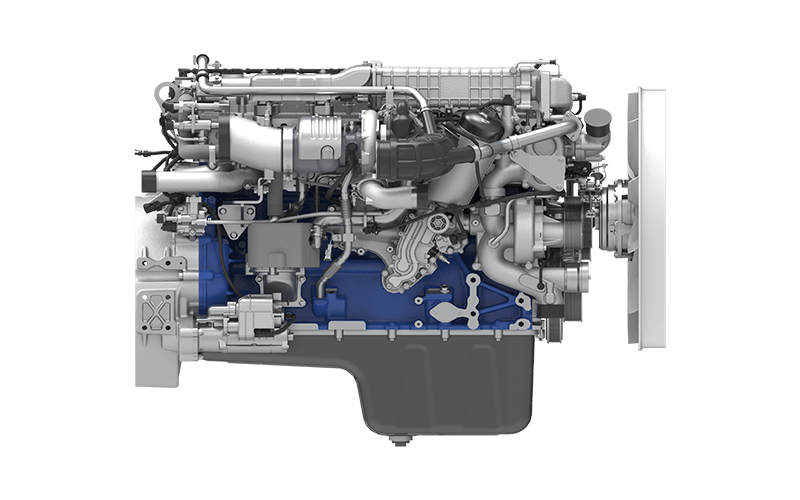

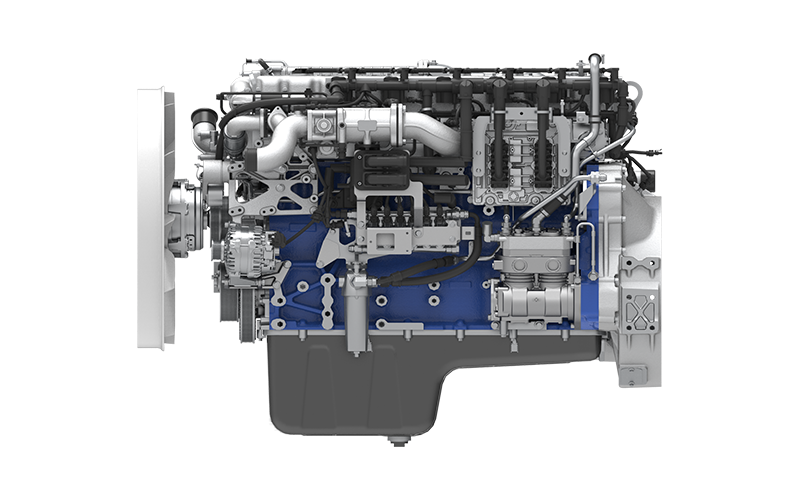

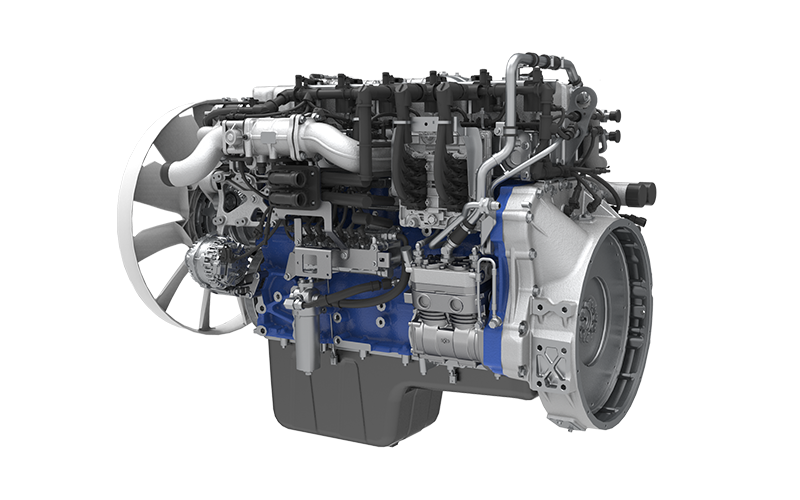

Weichai H-series natural gas engine, with power coverage of 257–316 kW, meeting Euro VI emission standards, suitable for tractors in combined transportation scenarios.
产品优势
Low gas consumption: Pulse exhaust system + pressure-stabilized waste gas control technology ensures more precise control and lower gas consumption, which is 6–10 g/kW·h lower than products with similar power.
Lightweight design: H1 platform modular design, featuring integrated wiring harness, integrated engine cooling/oil cooling module, and cast aluminum flywheel housing.
Excellent NVH performance: Vibration-damping and noise-reducing oil pan further reduces vibration and noise, being 1–3 dB(A) lower than competing products.
Powerful performance: High-tumble intake technology achieves a comprehensive breakthrough in power, with a peak torque of 1950 N·m.
Aesthetic upgrade: Family-style design, with smoother and more aesthetic gas and electrical routing.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP10.5HNG430E62 |
316/1900 |
1935/900-1400 |
10.52 |
Euro VI |
ER+EGR+TWC |
For truck use |
24 |
|
WP10.5HNG410E62 |
301/1900 |
1935/1100-1300 |
10.52 |
Euro VI |
ER+EGR+TWC |
For truck use |
24 |
|
WP10.5HNG390E62 |
287/1900 |
1785/1100-1400 |
10.52 |
Euro VI |
ER+EGR+TWC |
For truck use |
24 |
|
WP10.5HNG350E62 |
257/1900 |
1485/1000-1600 |
10.52 |
Euro VI |
ER+EGR+TWC |
For truck use |
24 |
