Compact dimensions and lightweight design, effectively reducing enclosure costs and providing significant cost savings for customers.
Suitable for general market, telecommunications, industrial warehousing, livestock farming, and drone power supply applications
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

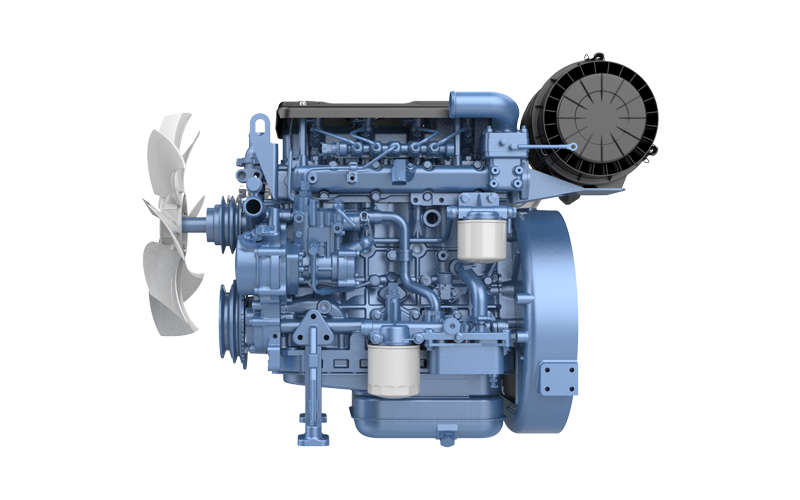

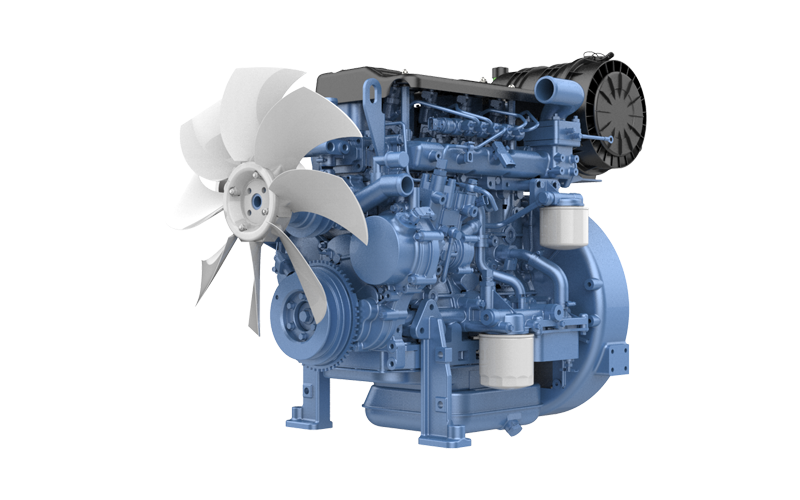

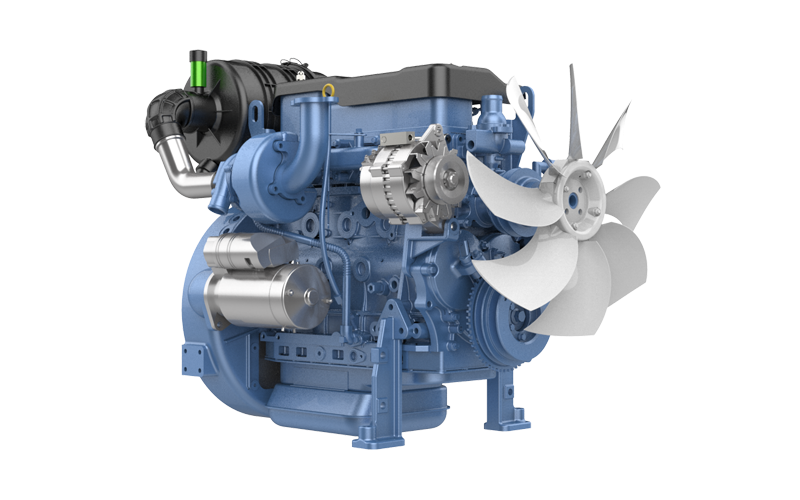

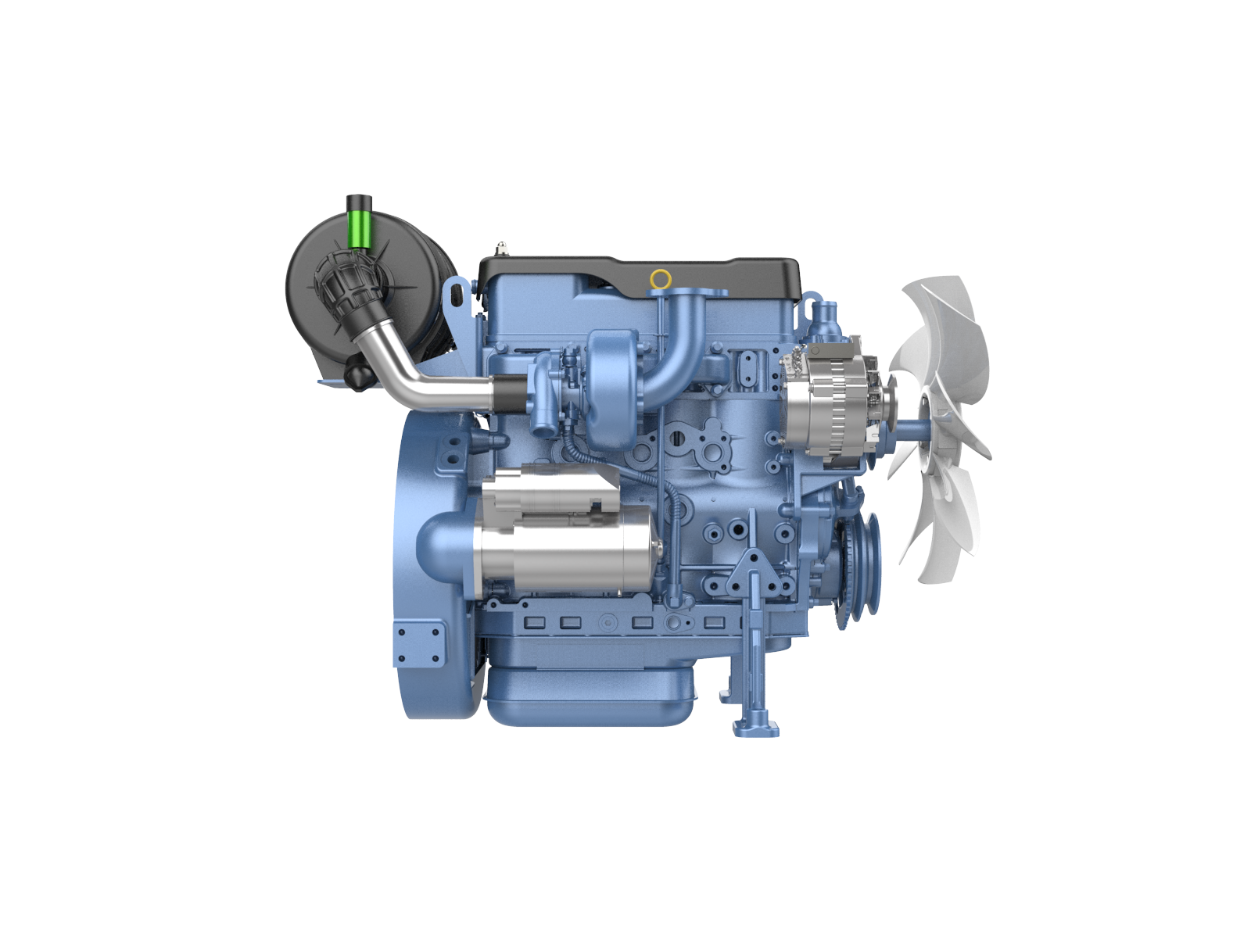

The 4M08 series is a new generation of high power density engines independently developed by Weichai, featuring a compact structure and superior fuel economy; Power output ranges from 18 to 44 kWm, suitable for 14–36 kWe generator sets.
产品优势
Fuel System: High injection pressure ensures high engine power and excellent fuel atomization for superior fuel economy; specifically developed electronic control functions for generator set operating conditions meet various control and speed regulation requirements
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
4M08 China Non-Road Stage III Product Spectrum |
|||||||
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
4M08G2D3/5 |
3.17 |
2 |
18/1500 |
20/1500 |
14 |
16 |
Electronically controlled high-pressure common rail |
|
4M08G4D3/5 |
3.17 |
2 |
25/1500 |
27.5/1500 |
16 |
18 |
Electronically controlled high-pressure common rail |
|
4M08G8D3/5 |
3.17 |
2 |
33/1500 |
36/1500 |
24 |
30 |
Electronically controlled high-pressure common rail |
|
4M08G10D3/5 |
3.17 |
2 |
36.8/1500 |
44/1500 |
30 |
36 |
Electronically controlled high-pressure common rail |
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
4M08G1D4/5 |
3.17 |
2 |
18/1500 |
20/1500 |
14 |
16 |
Electronically controlled high-pressure common rail |
|
4M08G3D4/5 |
3.17 |
2 |
25/1500 |
27.5/1500 |
16 |
18 |
Electronically controlled high-pressure common rail |
|
4M08G5D4/5 |
3.17 |
2 |
30/1500 |
33/1500 |
20 |
24 |
Electronically controlled high-pressure common rail |
|
4M08G7D4/5 |
3.17 |
2 |
33/1500 |
36/1500 |
24 |
30 |
Electronically controlled high-pressure common rail |
|
4M08G9D4/5 |
3.17 |
2 |
36.8/1500 |
44/1500 |
30 |
36 |
Electronically controlled high-pressure common rail |
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
4M08G2D3/5 |
3.17 |
2 |
18/1500 |
20/1500 |
14 |
16 |
Electronically controlled high-pressure common rail |
|
4M08G4D3/5 |
3.17 |
2 |
25/1500 |
27.5/1500 |
16 |
18 |
Electronically controlled high-pressure common rail |
|
4M08G8D3/5 |
3.17 |
2 |
33/1500 |
36/1500 |
24 |
30 |
Electronically controlled high-pressure common rail |
|
4M08G10D3/5 |
3.17 |
2 |
36.8/1500 |
44/1500 |
30 |
36 |
Electronically controlled high-pressure common rail |
|
4M08G2D3/6 |
3.17 |
2 |
21/1800 |
23/1800 |
14 |
16 |
Electronically controlled high-pressure common rail |
|
4M08G4D3/6 |
3.17 |
2 |
30/1800 |
33/1800 |
20 |
24 |
Electronically controlled high-pressure common rail |
|
4M08G6D3/6 |
3.17 |
2 |
36.9/1800 |
41/1800 |
30 |
33 |
Electronically controlled high-pressure common rail |
