WEICHAI

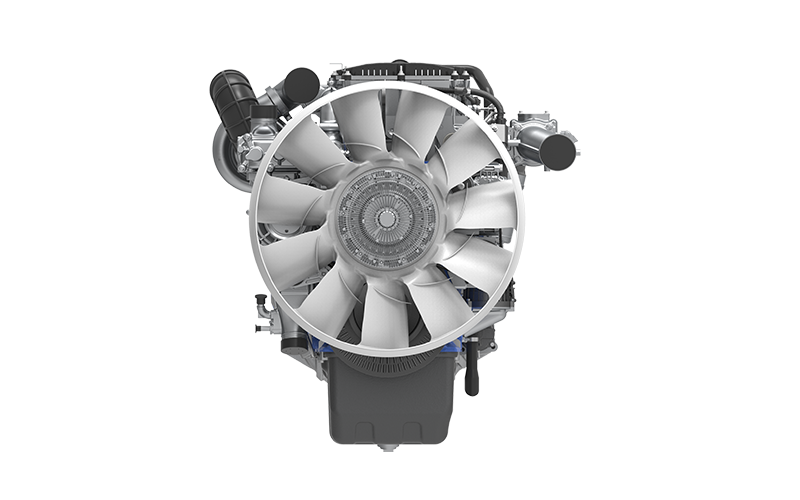

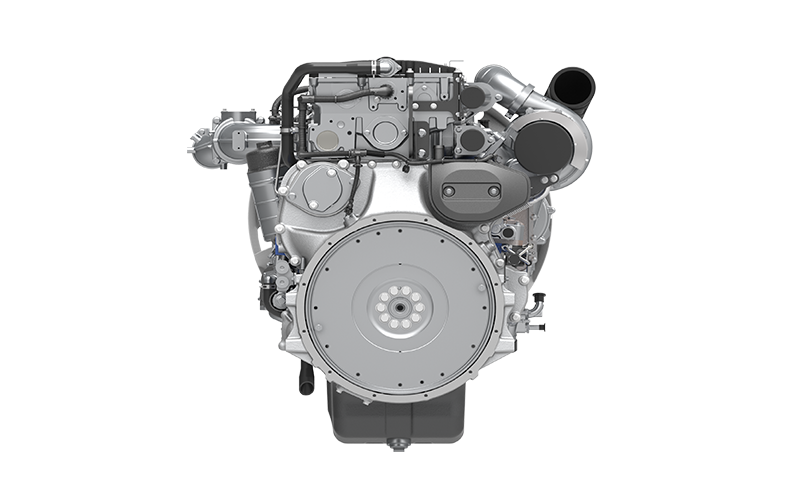

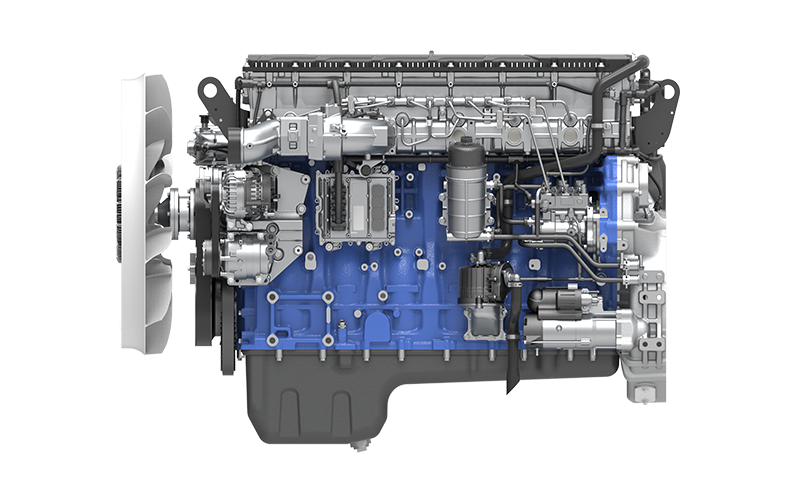

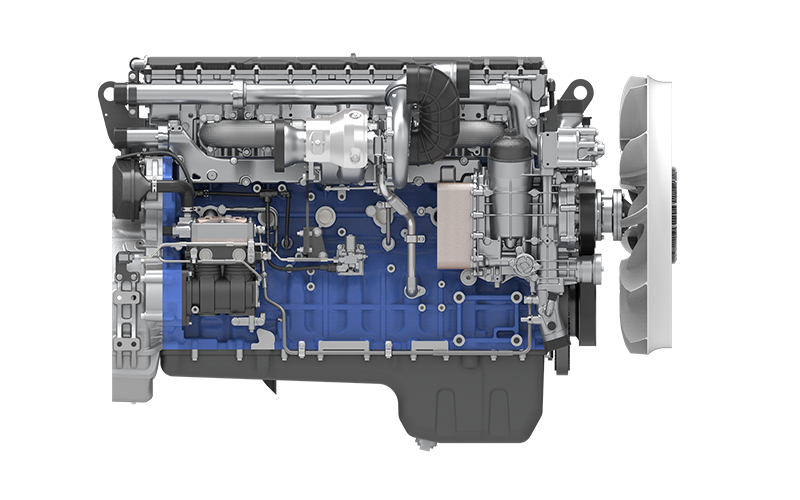

WP17T Engine for Tractor

Applicable to tractors for heavy-duty transport

515-618/700-840

功率范围 kW/Ps

3750/1000-1400

最大扭矩/转速 N·m / r/min

产品概述

Flagship power for tractor transport, with a maximum power of 840 Ps and a peak torque of 3750 N·m.

产品优势

Powerful performance: 16.6 L displacement, 800 Ps power, and peak torque of 3750 N·m, ensuring smooth operations everywhere.

Energy-saving and efficient: Four specialized technologies reducing fuel consumption across the entire MAP by 10 g/kW·h.

High reliability: Backed by the State Key Laboratory of Internal Combustion Engines and Power Systems and global top-tier component suppliers to create more reliable products.

Worry-free operation: Load rate reduced by 30%, engine life extended by 50%, making the vehicle more cost-effective to operate.

产品规格

功率范围 kW/Ps
515-618/700-840
最大扭矩转速 N·m / r/min
3750/1000-1400
排放标准
Euro VI
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
16.6
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1535×1242×724
G重量 kg
1380

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP17T840E68

618/1800

3700/1100-1400

16.6

Euro VI

CR+DOC+DPF+Hi-SCR

Tractor

4

WP17T800E68

588/1800

3750/1000-1400

16.6

Euro VI

CR+DOC+DPF+Hi-SCR

Tractor

4

WP17T750E68

551/1800

3400/850-1350

16.6

Euro VI

CR+DOC+DPF+Hi-SCR

Tractor

4

WP17T700E68

515/1800

3200/850-1350

16.6

Euro VI

CR+DOC+DPF+Hi-SCR

Tractor

4
