WEICHAI

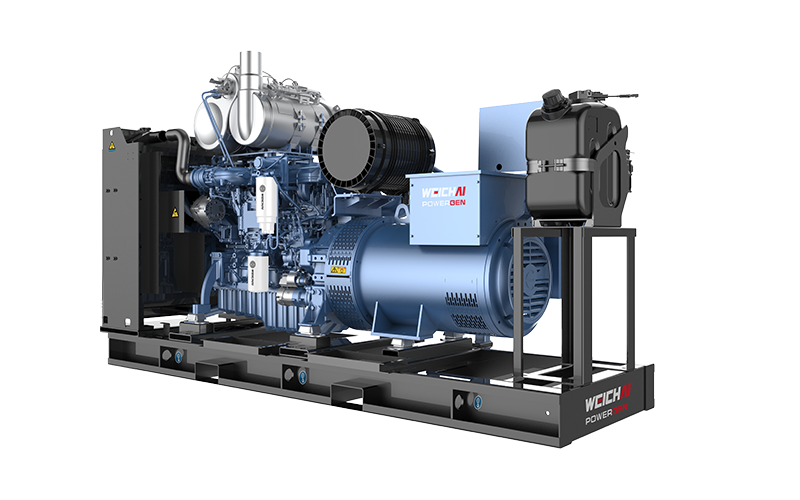

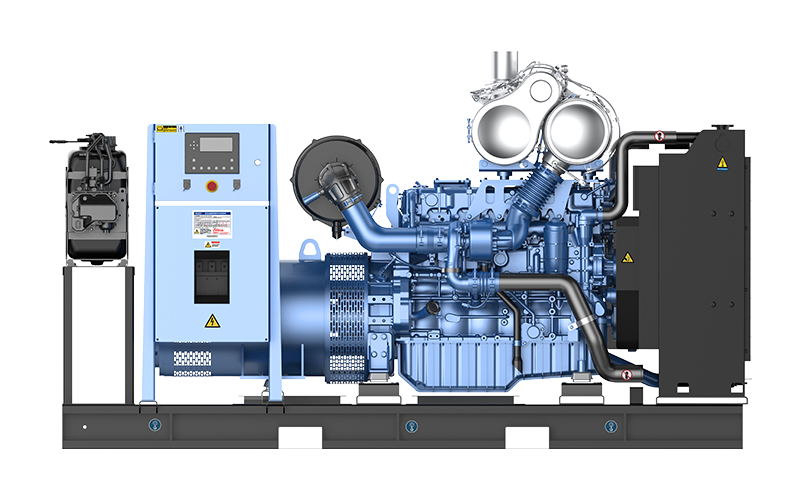

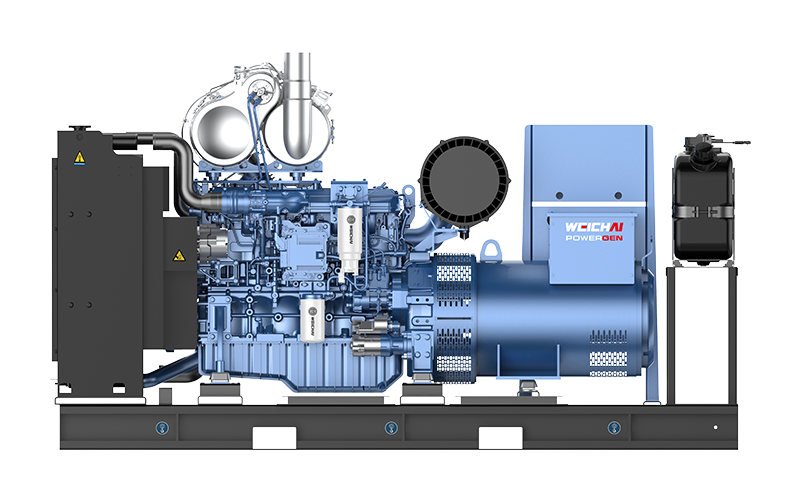

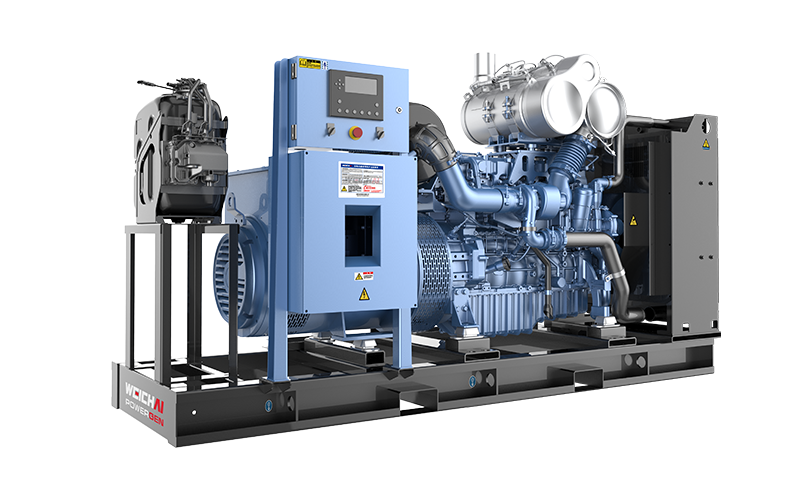

200 kVA-275 kVA Standard Land-based Generator Set Series

Suitable for industrial warehousing, real estate, telecommunication systems, public utilities, and construction rental

160-220

功率范围/持续功率

Soundproofed

结构形式

产品概述

Designed for continuous power supply and frequent start-stop scenarios in low-to-medium power ranges, it is suitable for primary or backup power requirements in industrial warehousing, temporary construction power for real estate, telecommunication base stations, and small-to-medium commercial facilities.

产品优势

Dynamic Performance: Features fast transient response, supports multiple air sources, and provides adaptive switching to ensure stable operation across all load profiles

Intelligent Control: Equipped with a microcomputer-based intelligent controller and international brand circuit breakers to achieve automated genset control

High Adaptability: Capable of operating in complex environments including high temperatures, extreme cold, high altitudes, high humidity, and dusty conditions, while maintaining performance with varying fuel qualities

High Economy: Equipped with high-pressure ratio turbochargers and high compression ratio technology to achieve lower fuel consumption rates than comparable products, significantly reducing total lifecycle operating costs

产品规格

功率范围kWe
160-220
产品系列
燃料
Diesel
发动机型式
L
气缸数
6
缸径 × 行程mm
排量 L
7.74
机组尺寸(敞开式)mm
3900 × 1350 × 2050 (Soundproofed)
重量(开式)kg
3140 (Soundproofed)
结构形式
Soundproofed

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Rated speed (rpm)

Standby Power (kVA/kW)

Prime Power (kVA/kW)

Baudouin Engine Model

Cylinders

Bore × Stroke (mm)

Governing System

Emission standard

WPG220L8

1500

220/176

200/160

6M12G4D3/5

6

108×136

Electronic control

Stage IIIA

WPG250L8

1500

250/200

225/180

6M12G6D3/5

6

108×136

Electronic control

Stage IIIA

WPG275L8

1500

275/220

250/200

6M12G8D3/5

6

108×136

Electronic control

Stage IIIA
