WEICHAI

1750 kVA-2817 kVA Standard Land-based Generator Set Series

Suitable for general market, data centers, real estate, oil and mining fields, equipment rental, water and power grid infrastructure, power stations, specialized products, and communication systems.

1400-1750

功率范围/持续功率

Open, Containerized

结构形式

产品概述

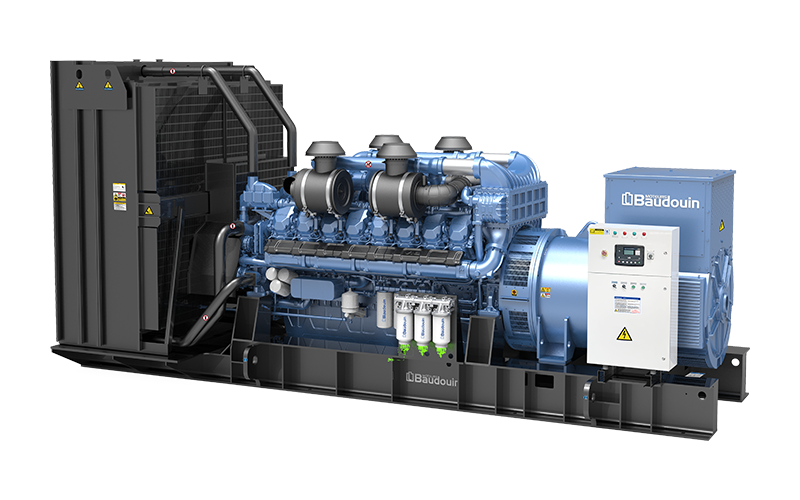

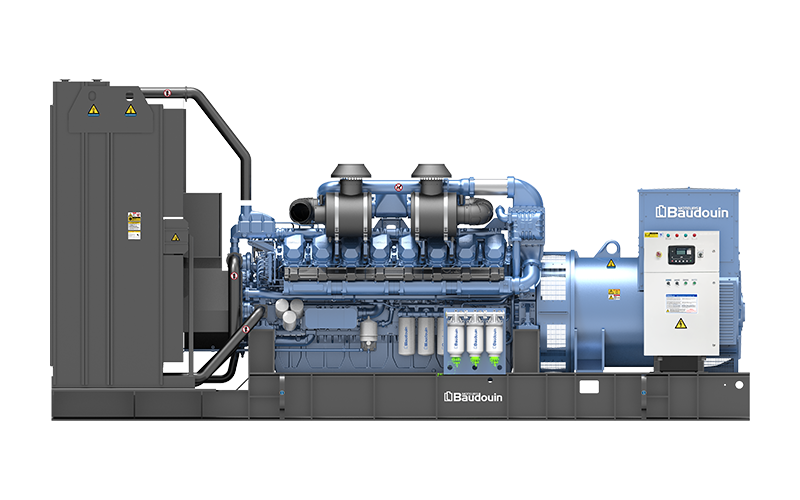

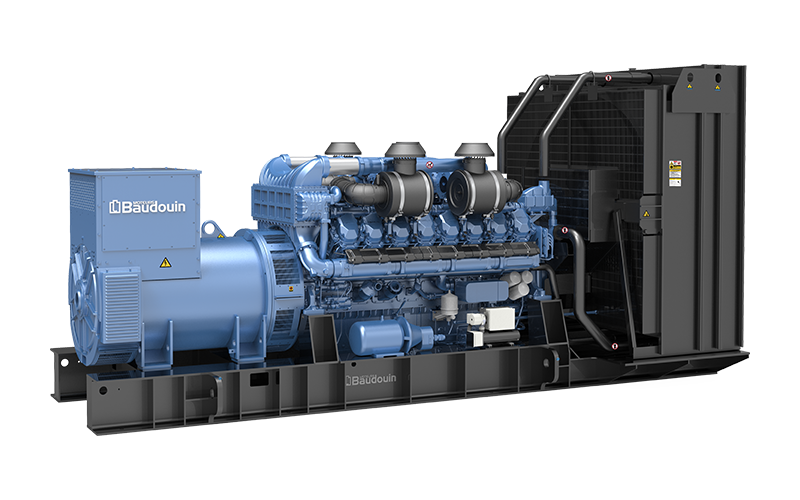

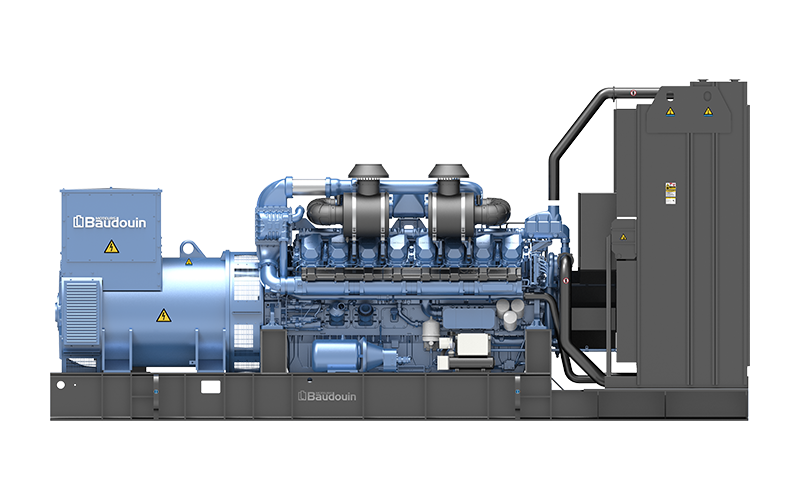

The 16M33 series land-based standard generator set is a high-performance power product with fully independent design and research for the engine, alternator, and control system.

产品优势

High-Efficiency Eco-friendly Power:Equipped with an intelligent ECU (Engine Control Unit) fuel system, achieving ultra-low fuel consumption through precise control of fuel injection and air-fuel ratio, with economy comparable to top international brands. Complies with EPA II emission standards, balancing power output with environmental compliance

All-Weather Operational Adaptability: Features military-grade protection design, turbocharged intercooling system, and low-temperature heating device, ensuring stable operation in extreme temperatures from -30℃ to 55℃, altitudes up to 3,000 meters, and 95% humidity, effortlessly handling harsh environments such as mining sites and islands

Intelligent Control Platform: Integrated with a digital smart controller, supporting millisecond-level dynamic response, meeting G3 transient performance standards, and enabling cloud-based energy efficiency management via IoT modules

Long-Term Reliable Guarantee: The generator sets have undergone more than thirty durability and performance tests, ensuring long-lasting durability and superior reliability

Modular Service System: Based on a platform-based development architecture, major components are interchangeable across models, significantly reducing maintenance downtime; Equipped with an intelligent diagnostic interface and supported by Weichai's global emergency service network, significantly reducing lifecycle operation and maintenance costs

产品规格

功率范围kWe
1400-1750
产品系列
燃料
Diesel
发动机型式
V-type
气缸数
16
缸径 × 行程mm
排量 L
52.3
机组尺寸(敞开式)mm
5900 × 2756 × 3058 (Containerized)
重量(开式)kg
14500 (Open)
结构形式
Open, Containerized

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Rated speed (rpm)

Standby Power (kVA/kW)

Prime Power (kVA/kW)

Baudouin Engine Model

Cylinders

Bore × Stroke (mm)

Governing System

Emission standard

WPG1750*7

1500

1750/1400

/

16M33G4D2/5

16

150×185

Electronic control

EPA Tier II

WPG1900*7

1500

1900/1520

/

16M33G6D2/5

16

150×185

Electronic control

EPA Tier II

WPG2000*7

1500

2000/1650

/

16M33G8D2/5

16

150×185

Electronic control

EPA Tier II

WPG1500*76

1800

1875/1500

/

16M33G2D2/6

16

150×185

Electronic control

EPA Tier II

WPG1750*76

1800

2187.5/1750

/

16M33G4D2/6

16

150×185

Electronic control

EPA Tier II
