产品概述

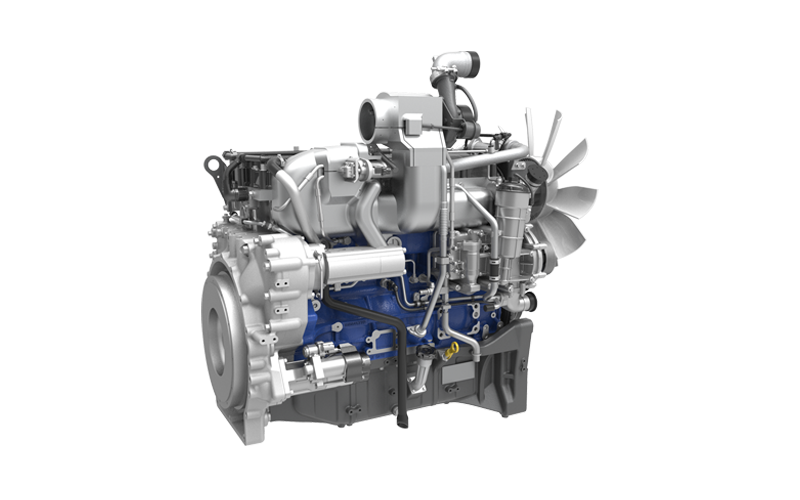

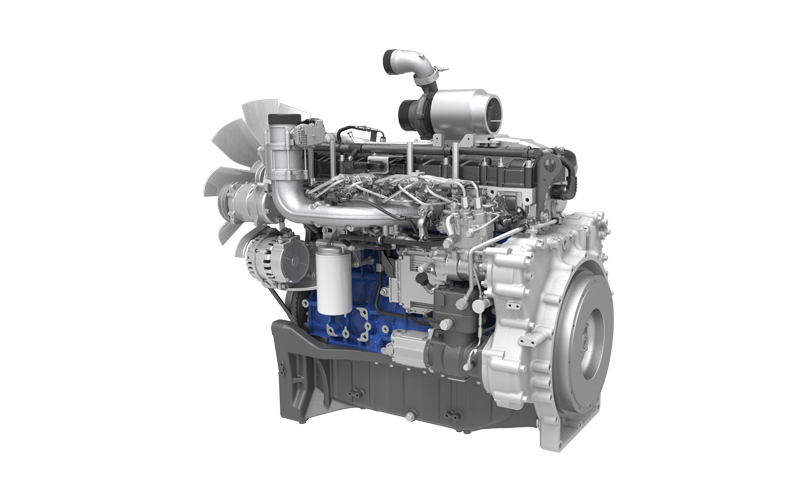

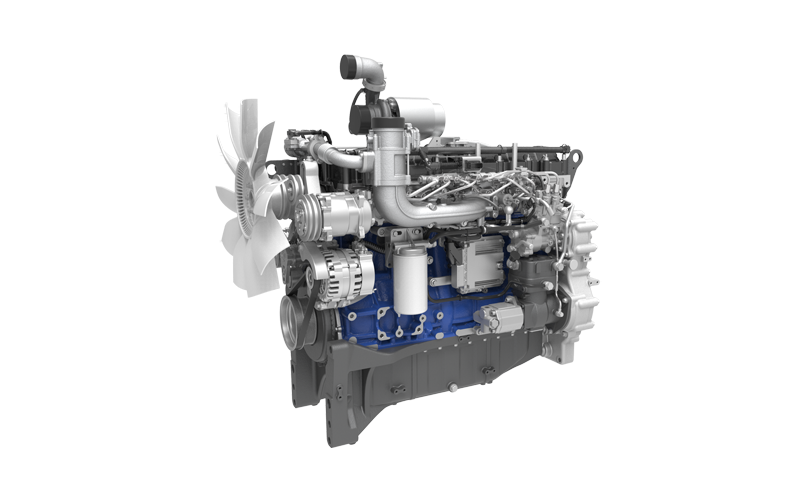

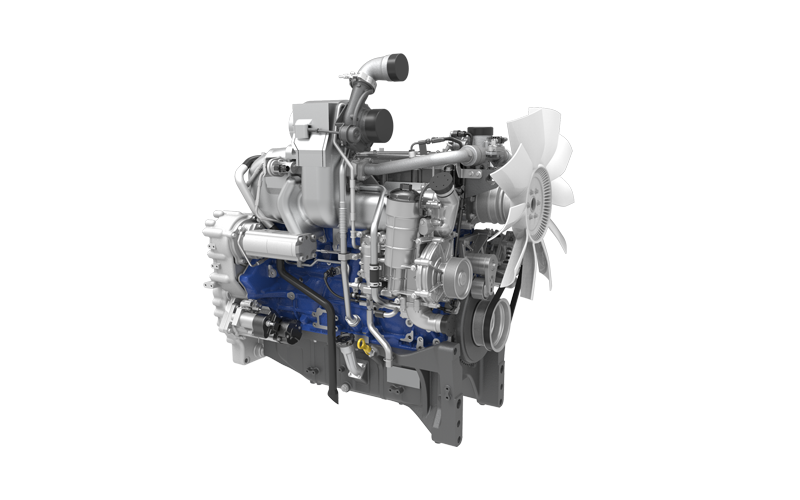

The Weichai WP7H tractor engine delivers high power, fuel efficiency, and environmental compliance. Featuring a four-valve structure and overhead camshaft, it offers high reliability, suits harsh agricultural conditions, and meets multiple emission standards.
产品优势
Power Performance: With a 6.8L displacement and power ranging from 103 to 186 kW, the four-valve structure ensures optimized air intake. It provides high torque at low speeds and a high torque reserve, resulting in rapid power response, strong anti-bogging capability under load, and significantly improved farming efficiency.
Economy: Equipped with an electronically controlled high-pressure common rail (HPCR) system, it achieves precise fuel atomization and superior combustion efficiency, delivering 5%–8% better fuel economy than China Non-Road Stage III products, while supporting customized power requirements via proprietary ECU.
Reliability: The overhead camshaft design eliminates traditional pushrods, reducing failure rates. It comes standard with a triple-stage fuel filter and a dust filtration system with ≥93% efficiency, ensuring high durability in poor fuel and harsh environmental conditions, along with excellent low-temperature starting performance. Produced in digital factories to guarantee consistent quality.
Comfort and Emissions: Lower vibration and noise levels reduce operator fatigue; Complies with EU Stage IIIA/China Non-Road Stage IV emission standards for environmental compliance. A modular family design ensures organized fuel lines and routing for convenient maintenance.
产品规格
备注:产品参数及图片仅供参考;如有变动,不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP7HG140E302 |
103/2100 |
570/1600 |
6.8 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP7HG160E302 |
118/2100 |
665/1600 |
6.8 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP7HG192E302 |
141/2100 |
890/1600 |
6.8 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP7HG220E302 |
162/2100 |
920/1600 |
6.8 |
EU Stage IIIA |
CR |
Tractor |
4 |
