产品概述

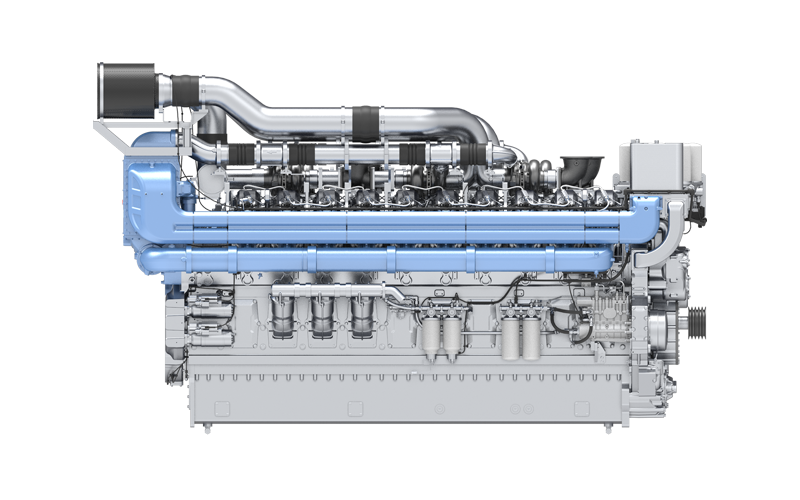

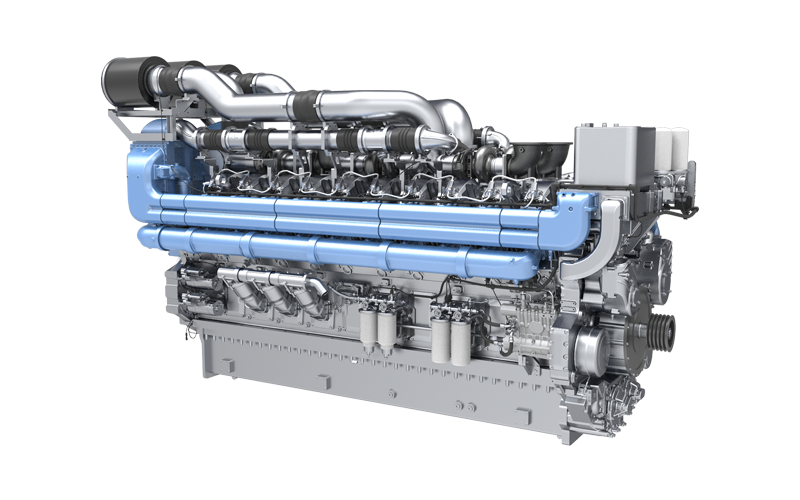

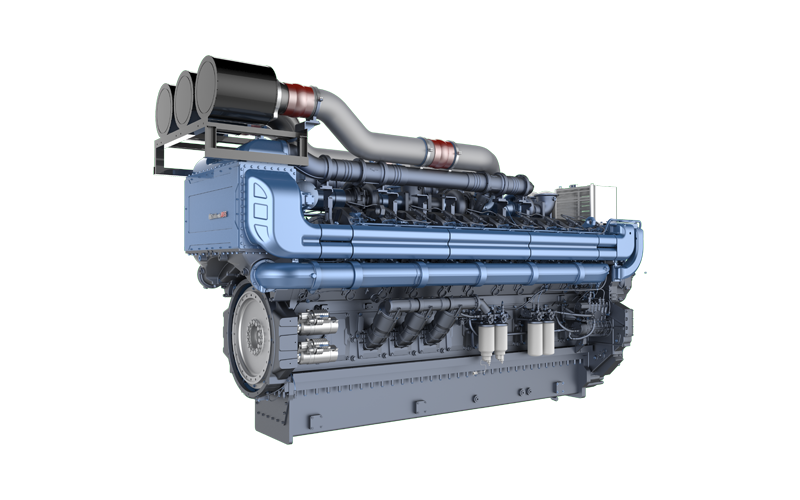

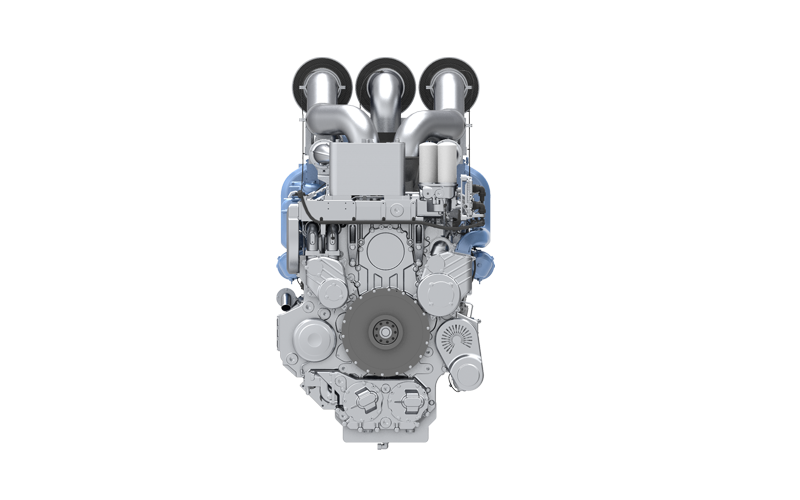

The 20M55 series is a new generation of high-end engines independently developed by Weichai, featuring a compact structure, high reliability, and excellent load response; The 20M55 diesel engine offers a power output range of 3550–4550 kWm, suitable for 3300–4000 kWe generator sets.
产品优势
High reliability: Compacted graphite iron (CGI) cylinder block and cylinder head, alloy steel crankshaft, high structural strength, and long design service life
Energy-saving and eco-friendly: Adopts a high-efficiency sextuple turbocharging system for optimized air intake and more efficient combustion
Superior power performance: Specifically designed to meet the rigorous requirements of modern data centers, featuring flexible calibration of the proprietary ECU and excellent load-bearing capacity
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
20M55G4500/5 |
109.4 |
4 |
3590/1500 |
3950/1500 |
3300 |
3600 |
Electronically controlled high-pressure common rail |
|
20M55G4750/5 |
109.4 |
4 |
3775/1500 |
4150/1500 |
3500 |
3800 |
Electronically controlled high-pressure common rail |
|
20M55G5250/5 |
109.4 |
4 |
4140/1500 |
4550/1500 |
3800 |
4000 |
Electronically controlled high-pressure common rail |
|
20M55G3600/6 |
109.4 |
4 |
3550/1800 |
3905/1800 |
3300 |
3600 |
Electronically controlled high-pressure common rail |
|
20M55G4000/6 |
109.4 |
4 |
3930/1800 |
4320/1800 |
3600 |
4000 |
Electronically controlled high-pressure common rail |
|
20M55G4250/6 |
109.4 |
4 |
4140/1800 |
4550/1800 |
3800 |
4000 |
Electronically controlled high-pressure common rail |
